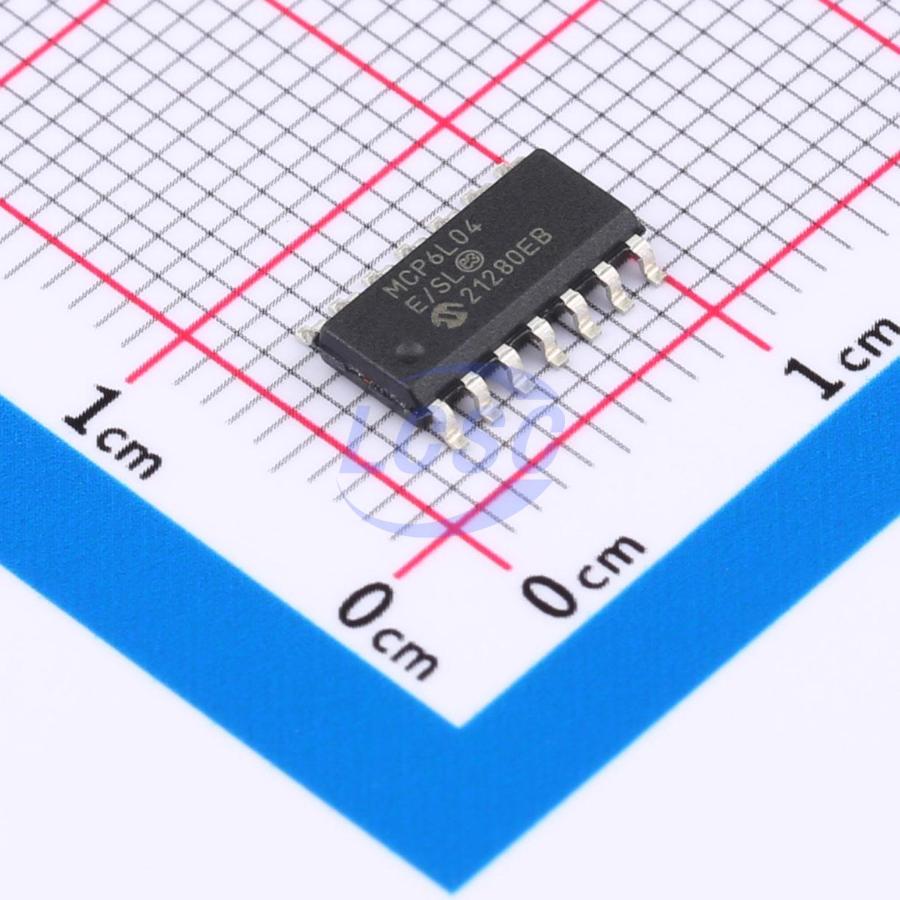

MCP6L04T-E/SL

20mA 4 5mV 600V/ms 78dB 2pA 85uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

1 MHz, 85 μA Op Amps

Manufacturer: MICROCHIP
Manufacturer part #: MCP6L04T-E/SL
Store part #: C626833
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,243 in stock

#C626833

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹101.49	₹101.49
10+	₹86.06	₹860.60
30+	₹78.23	₹2,346.90
100+	₹70.62	₹7,062.00
500+	₹64.11	₹32,055.00
1,000+	₹61.72	₹61,720.00

Quantity (min 1)

1 × ₹101.49

₹101.49

excl. GST

₹119.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,600 per reel

MCP6L04T-E/SL

₹101.49 for 1 + GST

Specifications

Output Current: 20mA
Number of Channels: 4
Vos - Input Offset Voltage: 5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 78dB
Ib - Input Bias Current: 2pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 85uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 24nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,600 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.19 g

Overview

The MCP6L01/1R/1U/2/4 family of operational amplifiers (op amps) supports general purpose applications. The combination of rail-to-rail input and output, low quiescent current and bandwidth fit into many applications. This family has a 1 MHz Gain Bandwidth Product (GBWP) and a low 85 µA per amplifier quiescent current. These op amps operate on supply voltages between 1.8V and 6.0V, with rail-to-rail input and output swing. They are available in the extended temperature range.

Applications

Portable Equipment
Photodiode Amplifier
Analog Filters
Notebooks and PDAs
Battery-Powered Systems

Key features

Available in SC70 and SOT-23 Packages
Gain Bandwidth Product: 1 MHz (typical)
Rail-to-Rail Input/Output
Supply Voltage: 1.8V to 6.0V
Supply Current: IQ = 85 µA/Amplifier (typical)
Extended Temperature Range: -40°C to +125°C
Available in Single, Dual and Quad Packages
