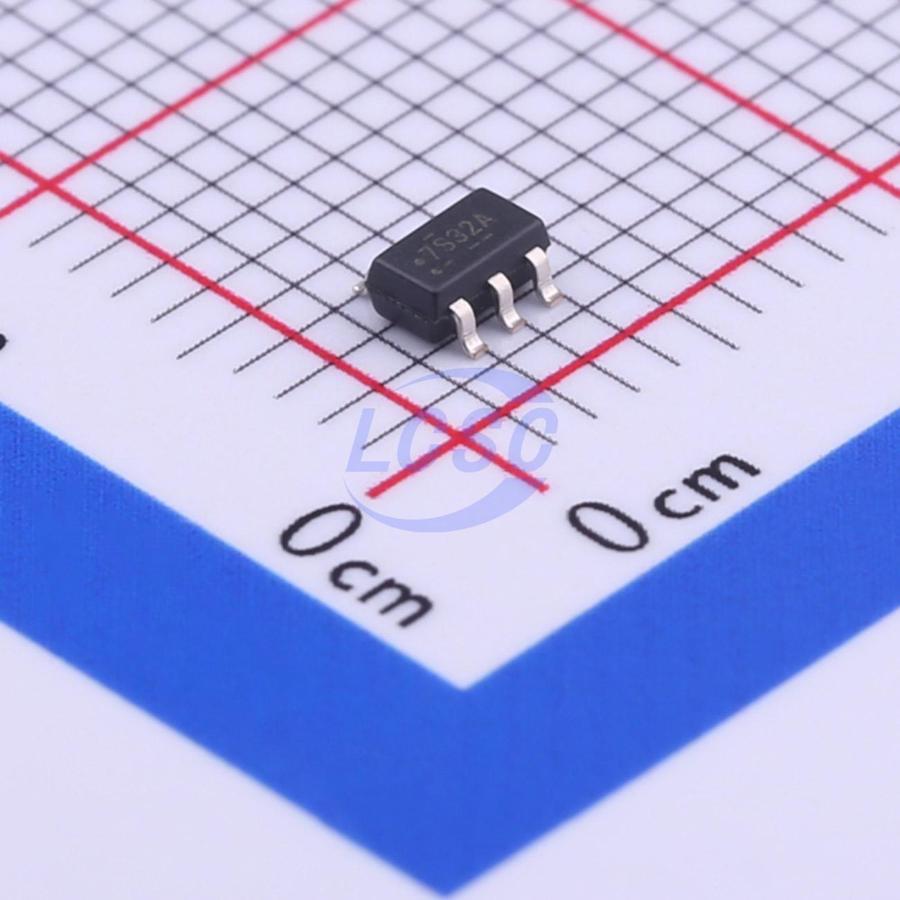

2-Input OR Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NC7S32M5X
- Store part #
- C7417
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,664 in stock
#C7417
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹10.05 | ₹10.05 |
| 10+ | ₹8.07 | ₹80.70 |
| 30+ | ₹7.06 | ₹211.80 |
| 100+ | ₹6.31 | ₹631.00 |
| 500+ | ₹5.72 | ₹2,860.00 |
| 1,000+ | ₹5.41 | ₹5,410.00 |
1 × ₹10.05
₹10.05
excl. GST
₹11.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S32M5X
₹10.05 for 1 + GST
Specifications
- Logic Family
- 7S Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 0V~260mV
- Propagation Delay
- 17ns@6V,50pF
- Input Logic Level - Low
- 500mV
- Input Logic Level - High
- 1.5V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 5.68V~5.85V;5.9V~6V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
The NC7S32 is a single 2-Input high performance CMOS OR Gate. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both inputs and output with respect to the VCC and GND rails. Three stages of gain between inputs and outputs assures high noise immunity and reduced sensitivity to input edge rate.
Key features
- Space saving SOT23 or SC70 5-lead package
- Ultra small MicroPak leadless package
- High Speed; tPD 3.5 ns typ
- Low Quiescent Power; ΔCC < 1 μA
- Balanced Output Drive; 2 mA |OL , −2 mA l0H
- Broad VCC Operating Range: 2V–6V
- Balanced Propagation Delays
- Specified for 3V Operation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC7S32F,LF#C5156531TOSHIBA · SC-74A(SOT-753) | TOSHIBA | SC-74A(SOT-753) | 4,875 | ₹13.63 · 4,875 in stock | View |
| MC74HC1G32DBVT1G#C891439onsemi · SC-74A-5 | onsemi | SC-74A-5 | 1,445 | ₹7.77 · 1,445 in stock | View | |
 | MC74HC1G32DTT1G-TP#C52205176TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,380 | ₹5.73 · 2,380 in stock | View |
 | 74HC1G32GV#C52205104TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,730 | ₹5.97 · 3,730 in stock | View |
 | NC7S32M5X#C19829497TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,630 | ₹7.20 · 1,630 in stock | View |
