TOSHIBADatasheet (PDF)

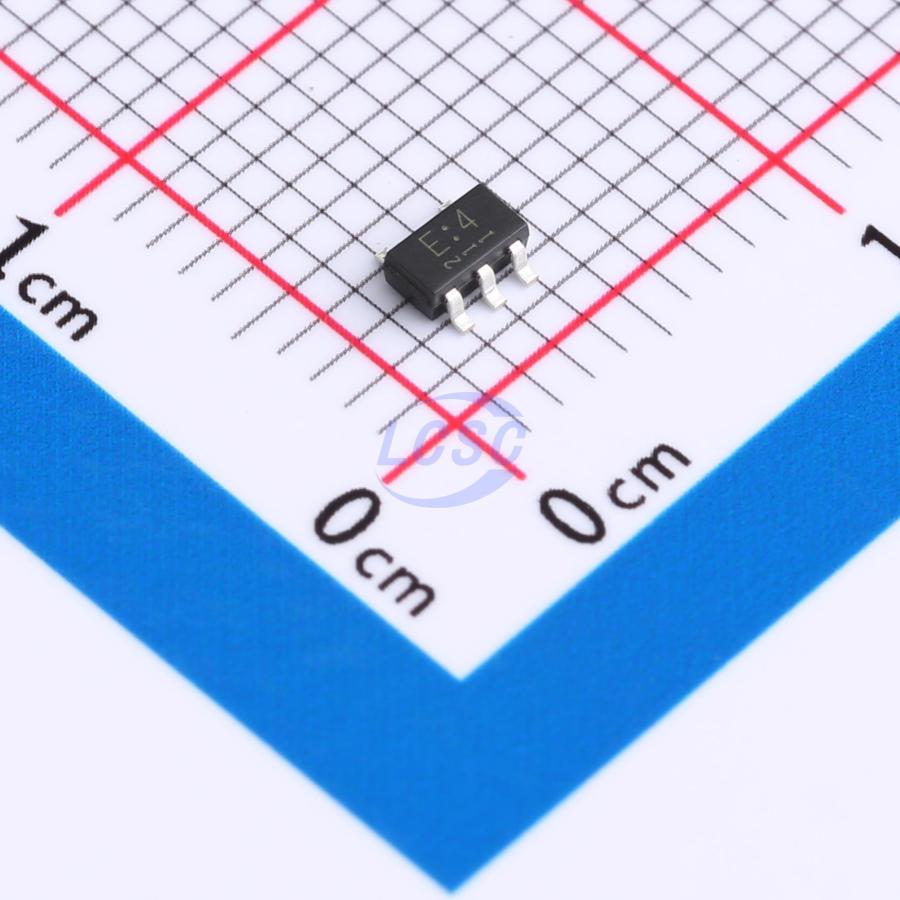

TC7S32F,LF
OR Gate IC 1 Channel SC-74A(SOT-753)
SC-74A(SOT-753)ROHS3 CompliantActive
2-Input OR Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7S32F,LF
- Store part #
- C5156531
- Package / case
- SC-74A(SOT-753)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,875 in stock
#C5156531
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.63 | ₹68.15 |
| 50+ | ₹11.02 | ₹551.00 |
| 150+ | ₹9.71 | ₹1,456.50 |
| 500+ | ₹8.73 | ₹4,365.00 |
| 3,000+ | ₹7.62 | ₹22,860.00 |
| 6,000+ | ₹7.24 | ₹43,440.00 |
5 × ₹13.63
₹68.15
excl. GST
₹80.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7S32F,LF
₹68.15 for 5 + GST
Specifications
- Logic Family
- TC7S Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 0V~100mV;180mV~260mV
- Propagation Delay
- 21ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 5.68V~5.8V;5.9V~6V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
Key features
- High Speed : tpd = 7 ns (typ.) at VCC = 5 V
- Low power dissipation : ICC = 1 μA (max) at Ta = 25°C
- High noise immunity : VNH = VNL = 28% VCC (min)
- Output drive capability : 5 LSTTL Loads
- Symmetrical Output Impedance : |Ioh| = Iol = 2 mA (min)
- Balanced propagation delays : tPLH ≈ tPHL
- Wide operating voltage range : VCC = 2 to 6 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NC7S32M5X#C7417onsemi · SOT-23-5 | onsemi | SOT-23-5 | 2,664 | ₹10.05 · 2,664 in stock | View |
| MC74HC1G32DBVT1G#C891439onsemi · SC-74A-5 | onsemi | SC-74A-5 | 1,445 | ₹7.77 · 1,445 in stock | View | |
 | 74HC1G32GV#C52205104TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,730 | ₹5.97 · 3,730 in stock | View |
 | MC74HC1G32DTT1G-TP#C52205176TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,380 | ₹5.73 · 2,380 in stock | View |
 | SN74AHC1G32DBVR#C7470TI · SOT-23-5 | TI | SOT-23-5 | 29,810 | ₹9.49 · 29,810 in stock | View |
