onsemiDatasheet (PDF)

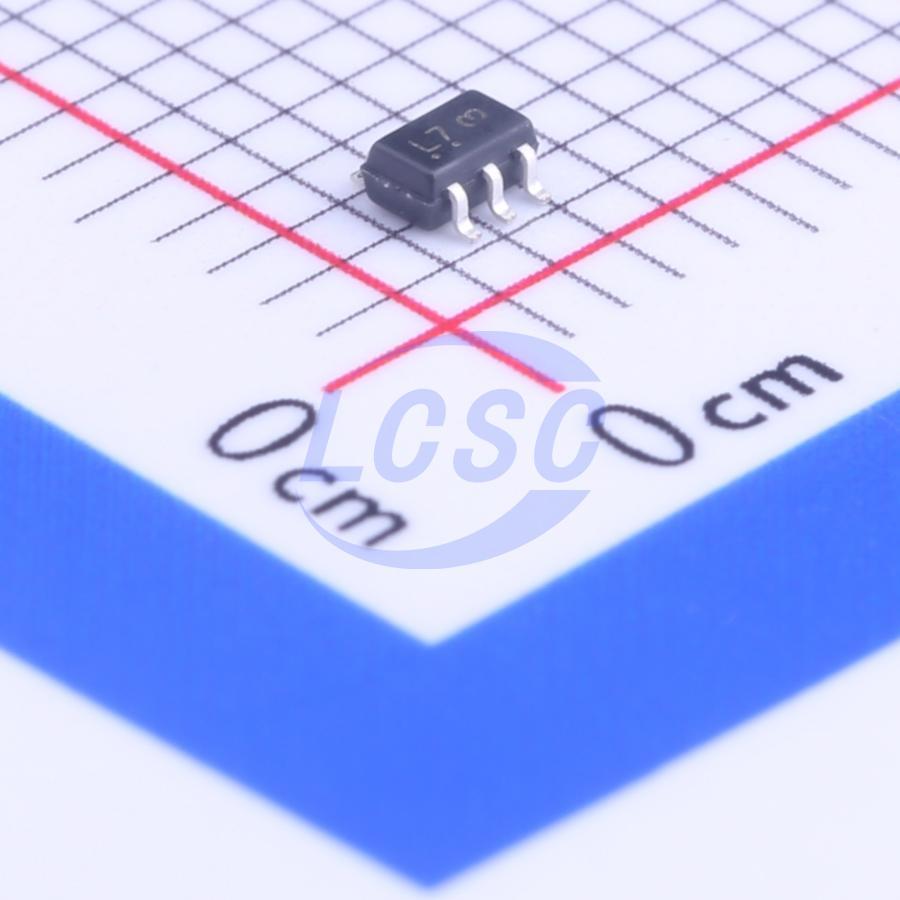

NL17SZ07DFT2G
1.65V~5.5V 1 1 2.5ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS3 CompliantActive
Single Non-Inverting Buffer with Open Drain Output
- Manufacturer
- onsemi
- Manufacturer part #
- NL17SZ07DFT2G
- Store part #
- C113255
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,020 in stock
#C113255
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.55 | ₹65.50 |
| 100+ | ₹5.11 | ₹511.00 |
| 300+ | ₹4.39 | ₹1,317.00 |
| 3,000+ | ₹3.85 | ₹11,550.00 |
| 6,000+ | ₹3.41 | ₹20,460.00 |
| 9,000+ | ₹3.19 | ₹28,710.00 |
10 × ₹6.55
₹65.50
excl. GST
₹77.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SZ07DFT2G
₹65.50 for 10 + GST
Specifications
- Function
- Level shifting
- Series
- 17SZ
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -55℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 2.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The NL17SZ07 is a high performance single non−inverting buffer with open drain outputs operating from a 1.65 to 5.5 V supply. The Output stage is open drain with Over Voltage Tolerance. This allows the NL17SZ07 to be used to interface 5.0 V circuits to circuits of any voltage between 0 and +7.0 V.
Key features
- Tiny SOT−353, SOT−553 and SOT−953 Packages
- Extremely High Speed: tPD 2.5 ns (typical) at VCC = 5 V
- Designed for 1.65 V to 5.5 V VCC Operation, CMOS Compatible
- Over Voltage Tolerant Inputs VIN may be Between 0 and 7.0 V for VCC Between 0.5 and 5.5 V
- TTL Compatible − Interface Capability with 5.0 V TTL Logic with VCC = 2.7 V to 3.6 V
- LVCMOS Compatible
- 24 mA Output Sink Capability, Pullup may be between 0 and 7.0 V
- Near Zero Static Supply Current Substantially Reduces System Power Requirements
- Chip Complexity: FET = 20
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
