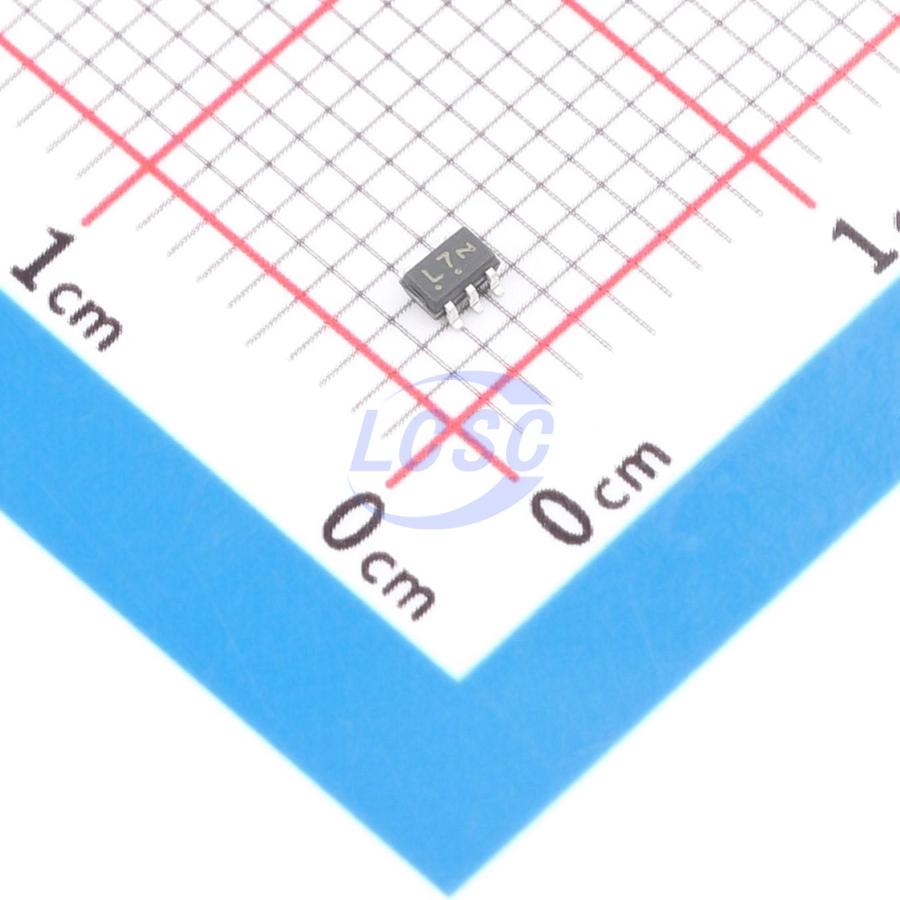

onsemi

NL17SZ07DFT2G-Q

1.65V~5.5V 1 1 2.1ns@5V,50pF SC-88A Buffers, Drivers, Receivers, Transceivers RoHS

SC-88AROHS3 CompliantActive

Manufacturer: onsemi
Manufacturer part #: NL17SZ07DFT2G-Q
Store part #: C30064566
Package / case: SC-88A
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Bag-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,910 in stock

#C30064566

Stock & price checked 25 h ago

Quantity	Unit price	Pack price
5+	₹12.24	₹61.20
50+	₹9.78	₹489.00
150+	₹8.55	₹1,282.50
500+	₹7.63	₹3,815.00
3,000+	₹6.89	₹20,670.00
6,000+	₹6.52	₹39,120.00

Quantity (min 5, multiples of 5)

5 × ₹12.24

₹61.20

excl. GST

₹72.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per bag

NL17SZ07DFT2G-Q

₹61.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Power-off isolation
Voltage - Supply: 1.65V~5.5V
Output Type: Open-drain
Current - Output Low(IOL): 24mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Operating Temperature: -55℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 10uA
Propagation Delay: 2.1ns@5V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Bag-packed
Standard pack: 3,000 / Bag
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.029 g

Overview

The NL17SZ07 is a single-channel non-inverting buffer with open-drain output in a small-footprint package. The device is designed for a VCC operating voltage range of 1.65V to 5.5V, with a typical propagation delay of 2.1 ns at VCC = 5V. Its inputs/outputs are tolerant of overvoltages up to 5.5V. The IOFF feature supports partial power-down protection. Capable of sinking 24 mA at 3.0V. Available in SC-88A, SC-74A, SOT-553, SOT-953, and UDFN6 package options. Die complexity is less than 100 FETs. The -Q suffix versions are intended for automotive and other applications requiring specific manufacturing sites and change control requirements; AEC-Q100 qualified and PPAP capable. The device is lead-free, halogen-free/BFR-free, and RoHS compliant.

Key features

Designed for 1.65V to 5.5V VCC operating voltage range
Typical propagation delay of 2.1 ns at VCC = 5V
Input/output overvoltage tolerance up to 5.5V
IOFF feature supports partial power-down protection
Sinks 24 mA at 3.0V
Available in SC-88A, SC-74A, SOT-553, SOT-953, and UDFN6 packages
Die complexity below 100 FETs
-Q suffix for automotive and other applications requiring specific production site and change control requirements; AEC-Q100 qualified and PPAP capable
Lead-free, halogen-free/BFR-free, and RoHS compliant
