NSG1415

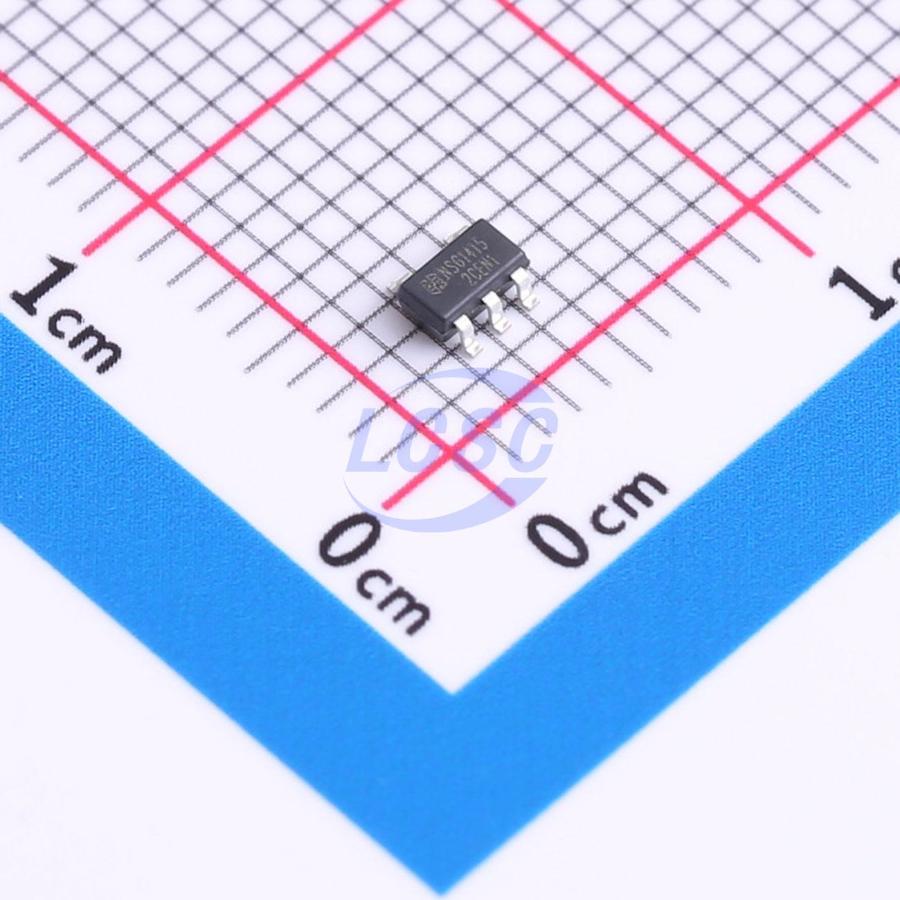

Low Side Gate Driver IC MOSFET IGBT SOT-23-5
2A single-channel low-side gate driver IC
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG1415
- Store part #
- C41414509
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,385 in stock
#C41414509
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.83 | ₹174.15 |
| 50+ | ₹27.03 | ₹1,351.50 |
| 150+ | ₹23.68 | ₹3,552.00 |
| 500+ | ₹19.51 | ₹9,755.00 |
| 3,000+ | ₹17.65 | ₹52,950.00 |
| 6,000+ | ₹16.54 | ₹99,240.00 |
5 × ₹34.83
₹174.15
excl. GST
₹205.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG1415
₹174.15 for 5 + GST
Specifications
- Quiescent Current
- 500uA
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 2A
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
NSG1415/6(R) is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust single-chip integrated architecture. The NSG1415/6(R) logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and output current buffer stage. Operates over a temperature range of -40°C to 125°C.
Applications
- Switching power supplies
- Universal gate driver for switching converters
- Drives MOSFETs and IGBTs
Key features
- Non-inverting/inverting output
- Compatible with 3.3V and 5V input logic
- Operating range: 4.5V ~ 25V
- High capacitive load drive capability: switching time < 100ns at 1nF load
- Wide temperature range: -40°C ~ 125°C
- Under-voltage lockout
- Turn-on/turn-off delay: Ton/Toff = 25ns/25ns
- Drive current capability: source/sink = 2A/2A
- RoHS compliant
- SOT23-5 package
