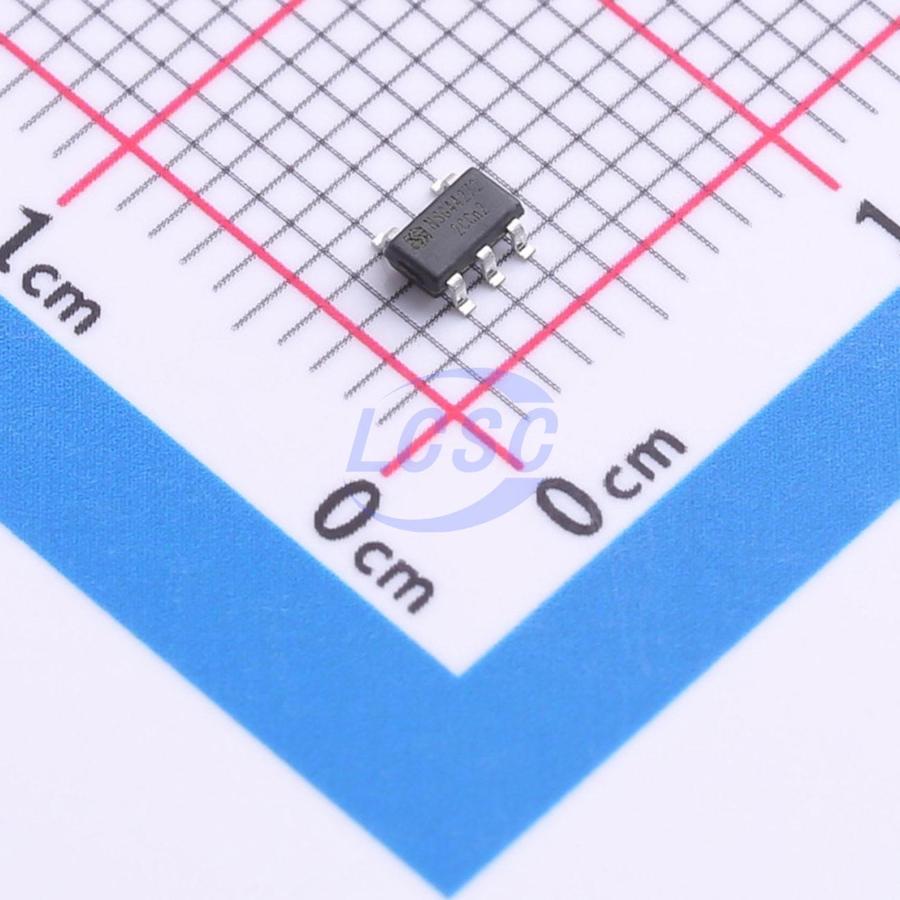

NSG44272
Low Side Gate Driver IC MOSFET IGBT SOT-23-5
Single-channel low-side gate driver chip with enable
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG44272
- Store part #
- C41414508
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,305 in stock
#C41414508
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.39 | ₹106.95 |
| 50+ | ₹18.68 | ₹934.00 |
| 150+ | ₹17.52 | ₹2,628.00 |
| 500+ | ₹16.07 | ₹8,035.00 |
| 3,000+ | ₹15.43 | ₹46,290.00 |
| 6,000+ | ₹15.04 | ₹90,240.00 |
5 × ₹21.39
₹106.95
excl. GST
₹126.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG44272
₹106.95 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 280uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
NSG44272 is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust monolithic integration architecture. The NSG44272 logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and output current buffer stage. Operates over a temperature range of -40°C to 125°C.
Applications
- Switching power supplies
- Universal gate driver for switch-mode converters driving MOSFETs and IGBTs
Key features
- CMOS Schmitt trigger input
- Non-inverting input/output
- 3.3V input logic compatible
- Output source/sink current capability: 2A/2A
- Operating range: 5V~25V
- High capacitive load drive capability
- Wide temperature range: -40°C~125°C
- UVLO
- UVLO positive-going threshold 4.0V
- UVLO negative-going threshold 3.9V
- Turn-on/turn-off propagation delay
- Ton/Toff = 25ns/25ns
- RoHS compliant
- SOT23-5
