NSG44273

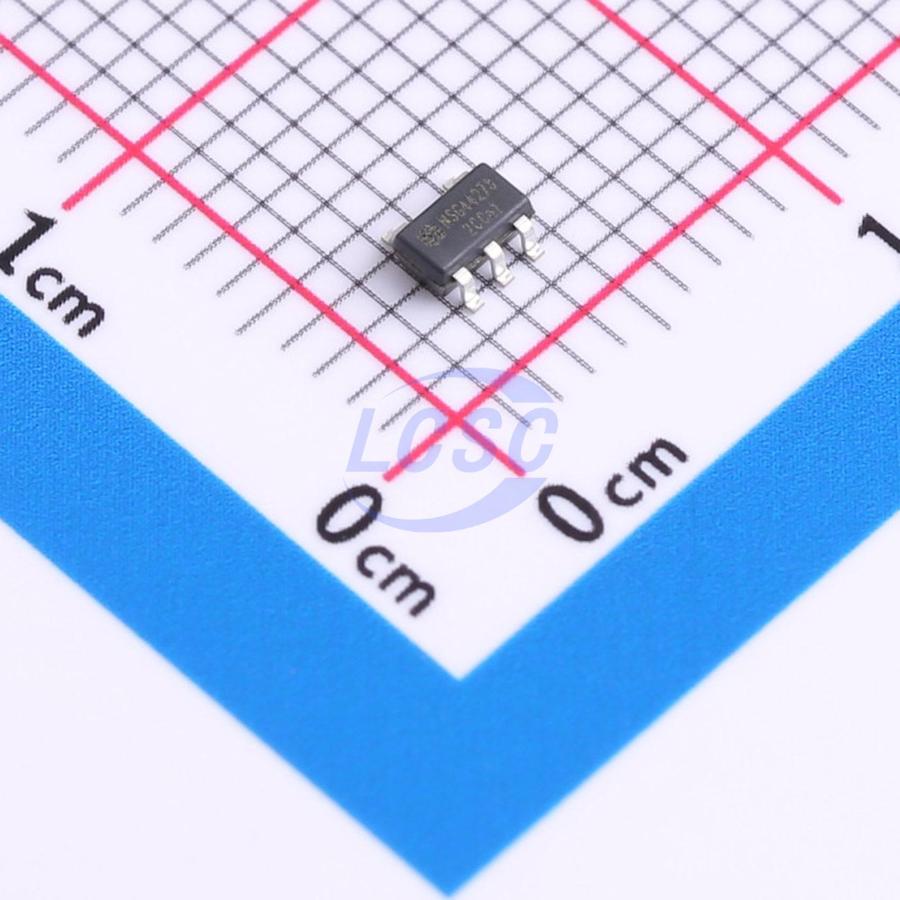

Low Side Gate Driver IC MOSFET IGBT SOT-23-5
Single-channel low-side in-phase gate driver IC
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG44273
- Store part #
- C7421044
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C7421044
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.36 | ₹136.80 |
| 50+ | ₹21.68 | ₹1,084.00 |
| 150+ | ₹19.26 | ₹2,889.00 |
| 500+ | ₹16.23 | ₹8,115.00 |
| 3,000+ | ₹14.88 | ₹44,640.00 |
| 6,000+ | ₹14.06 | ₹84,360.00 |
5 × ₹27.36
₹136.80
excl. GST
₹161.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG44273
₹136.80 for 5 + GST
Specifications
- Quiescent Current
- 180uA
- Voltage - Supply
- 5V~20V
- Driven Configuration
- Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 2A
- Rise Time
- 25ns
- Fall Time
- 25ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
NSG44273 is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust single-chip integrated architecture. The NSG44273 logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and output current buffer stage. Operates over a temperature range of -40°C to 125°C.
Applications
- Switching power supplies
- General-purpose gate driver for switch converters driving MOSFETs and IGBTs
Key features
- CMOS Schmitt trigger input
- Non-inverting input/output
- Compatible with 3.3V input logic
- Operating range: 5V~25V
- High capacitive load drive capability: switching time <100ns at 1nF load
- Wide temperature range: -40°C~125°C
- UVLO: UVLO rising threshold 4.0V, UVLO falling threshold 3.9V
- Turn-on/turn-off propagation delay: Ton/Toff = 50ns/50ns
- Drive current capability: source/sink = 2A/2A
- RoHS compliant
- SOT23-5
