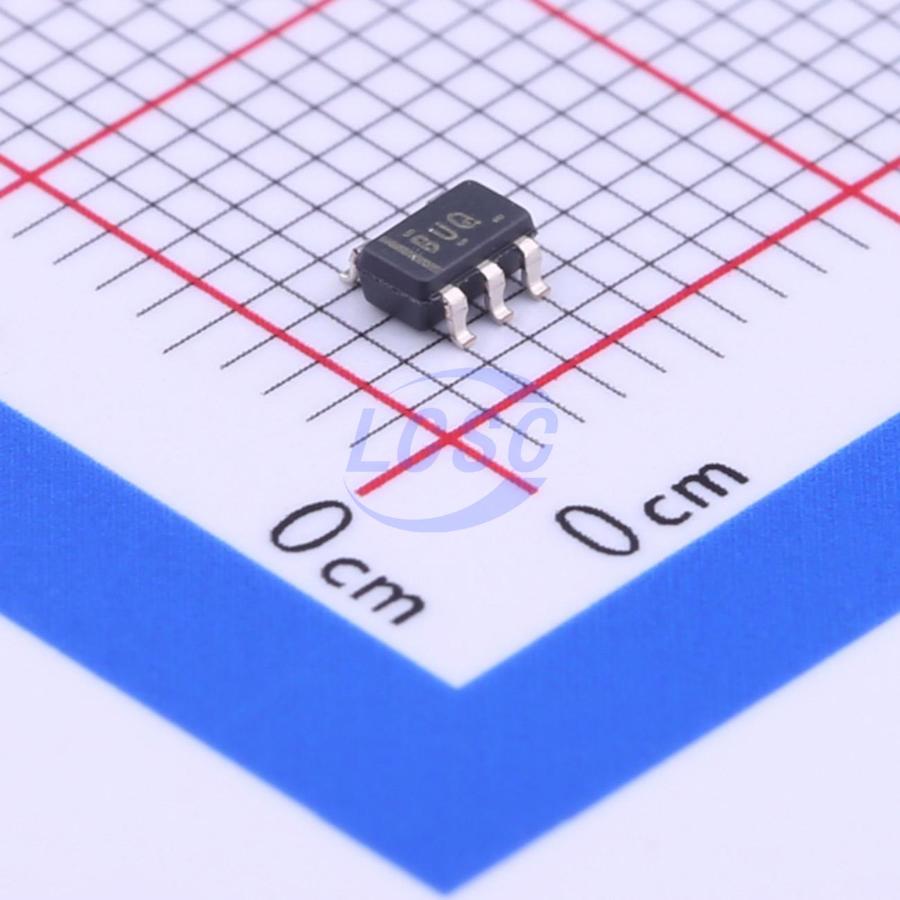

OPA376AIDBVR

30mA 1 5uV 2V/us 76dB 0.2pA 760uA 5.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Low-Noise, Low Quiescent Current, Precision Operational Amplifier

Manufacturer: TI
Manufacturer part #: OPA376AIDBVR
Store part #: C42134
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

22,425 in stock

#C42134

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹299.42	₹299.42
10+	₹262.92	₹2,629.20
30+	₹237.06	₹7,111.80
100+	₹213.60	₹21,360.00
500+	₹195.78	₹97,890.00
1,000+	₹191.21	₹1,91,210.00

Quantity (min 1)

1 × ₹299.42

₹299.42

excl. GST

₹353.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA376AIDBVR

₹299.42 for 1 + GST

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 5uV
Slew Rate: 2V/us
Input Offset Current(Ios): 0.2pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 76dB
Ib - Input Bias Current: 0.2pA
Input Offset Voltage Drift(Vos TC): 260nV/℃
Quiescent Current: 760uA
Gain Bandwidth Product: 5.5MHz
Input Voltage Noise Density: 7.5nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The OPA376 family represent a new generation of low-noise operational amplifiers with e -trim, offering outstanding dc precision and ac performance. Rail-to-rail input and output, low offset (25μv max), low noise (7.5nV/√Hz) ，quiescent current of 950μA max, and a 5.5MHz bandwidth make this part very attractive for a variety of precision and portable applications. In addition, this device has a reasonably wide supply range with excellent PSRR, making it attractive for applications that run directly from batteries without regulation. The OPA376 (single version) is available in MicroSIZE SC70 - 5, SOT23 - 5, and SO - 8 packages. The OPA2376 (dual) is offered in the WCSP - 8, MSOP - 8, and SO - 8 packages. The OPA4376 (quad) is offered in a TSSOP - 14 package. All versions are specified for operation from -40°C to +125°C

Applications

ADC BUFFER
AUDIO EQUIPMENT
MEDICAL INSTRUMENTATION
HANDHELD TEST EQUIPMENT
ACTIVE FILTERING
SENSOR SIGNAL CONDITIONING

Key features

LOW NOISE: 7.5nV/√Hz at 1kHz
0.1Hz TO 10Hz NOISE: 0.8μνPP
QUIESCENT CURRENT: 760μA (typ)
LOW OFFSETVOLTAGE: 5μν (typ)
GAINBANDWIDTHPRODUCT: 5.5MHz
RAIL - TO - RAIL INPUT AND OUTPUT
SINGLE - SUPPLY OPERATION
SUPPLY VOLTAGE: 2.2V to 5.5V
SPACE - SAVING PACKAGES: SC - 70, SOT23, WCSP, MSOP, TSSOP

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
OPA376M5/TR#C2902514HGSEMI · SOT-23-5	HGSEMI	SOT-23-5	2,135	₹38.79 · 2,135 in stock	View
HGA376M5/TR#C2902516HGSEMI · SOT-23-5	HGSEMI	SOT-23-5	2,637	₹54.45 · 2,637 in stock	View
HG376M5/TR#C2926365HGSEMI · SOT-23-5	HGSEMI	SOT-23-5	2,924	₹37.63 · 2,924 in stock	View
TPV376S5#C42370596TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	3,915	₹55.18 · 3,915 in stock	View
MS8515ARTZ#C42403127MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	809	₹54.68 · 809 in stock	View
