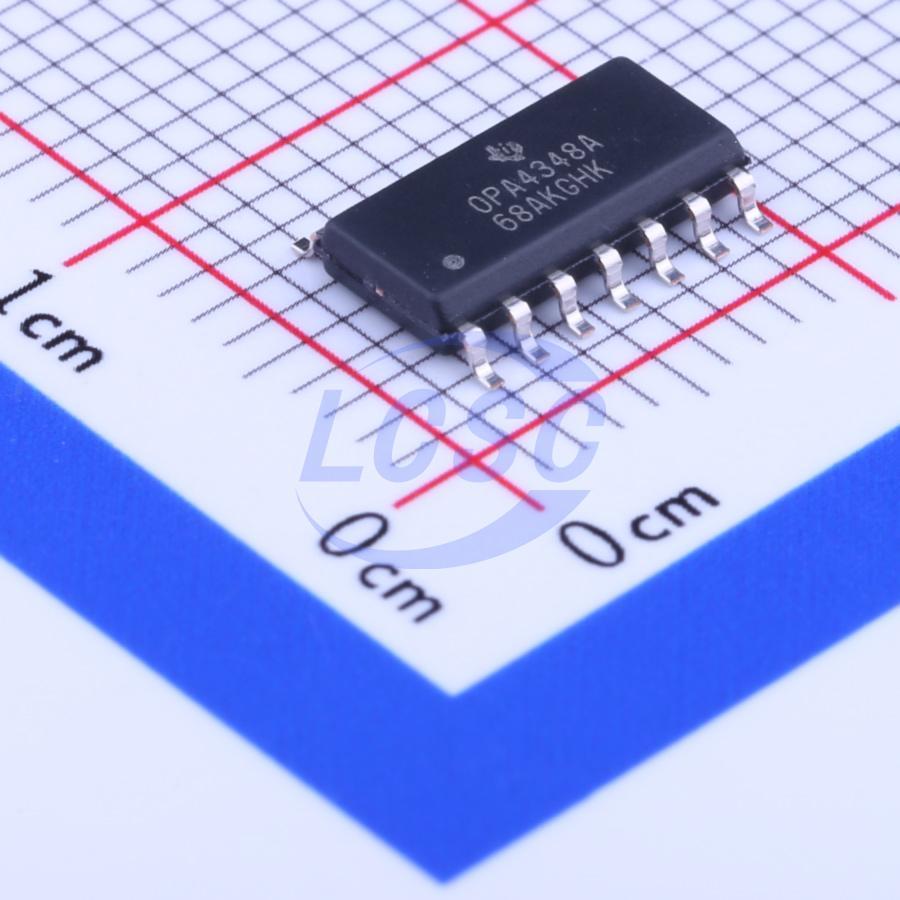

OPA4348AIDR

10mA 4 5mV 500V/ms 71dB 10pA 45uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

1MHz, 45uA, CMOS, Rail-to-Rail Operational Amplifiers

Manufacturer: TI
Manufacturer part #: OPA4348AIDR
Store part #: C42210
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,467 in stock

#C42210

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹68.73	₹68.73
10+	₹56.12	₹561.20
30+	₹50.90	₹1,527.00
100+	₹44.16	₹4,416.00
500+	₹41.12	₹20,560.00
1,000+	₹39.37	₹39,370.00

Quantity (min 1)

1 × ₹68.73

₹68.73

excl. GST

₹81.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA4348AIDR

₹68.73 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 10mA
Number of Channels: 4
Vos - Input Offset Voltage: 5mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 71dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 175uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1MHz
Features: EMI filtering/RF suppression;Built-in compensation
Input Voltage Noise Density: 35nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.264 g

Overview

The OPA348 series amplifiers are single supply, low-power, CMOS op amps in micro packaging. Featuring an extended bandwidth of 1MHz, and a supply current of 45µA, the OPA348 series is useful for low-power applications on single supplies of 2.1V to 5.5V. Low supply current of 45µA, and an input bias current of 0.5pA, make the OPA348 series an optimal candidate for low-power, high-impedance applications such as smoke detectors and other sensors. The OPA348 is available in the miniature SC70 - 5, SOT23 - 5 and SO - 8 packages. The OPA2348 is available in SOT23 - 8 and SO - 8 packages, and the OPA4348 is offered in space - saving TSSOP - 14 and SO - 14 packages. The extended temperature range of -40°C to +125°C over all supply voltages offers additional design flexibility.

Applications

PORTABLE EQUIPMENT
BATTERY - POWERED EQUIPMENT
SMOKE ALARMS
CO DETECTORS
MEDICAL INSTRUMENTATION

Key features

LOW l₀: 45µA Typical
LOW COST
RAIL - TO - RAIL INPUT AND OUTPUT
SINGLE SUPPLY: +2.1V to +5.5V
INPUT BIAS CURRENT: 0.5pA
MicroSIZE PACKAGES: SC70 - 5, SOT23 - 8 and TSSOP - 14
HIGH SPEED: POWER WITH BANDWIDTH: 1MHz
