RUNICDatasheet (PDF)

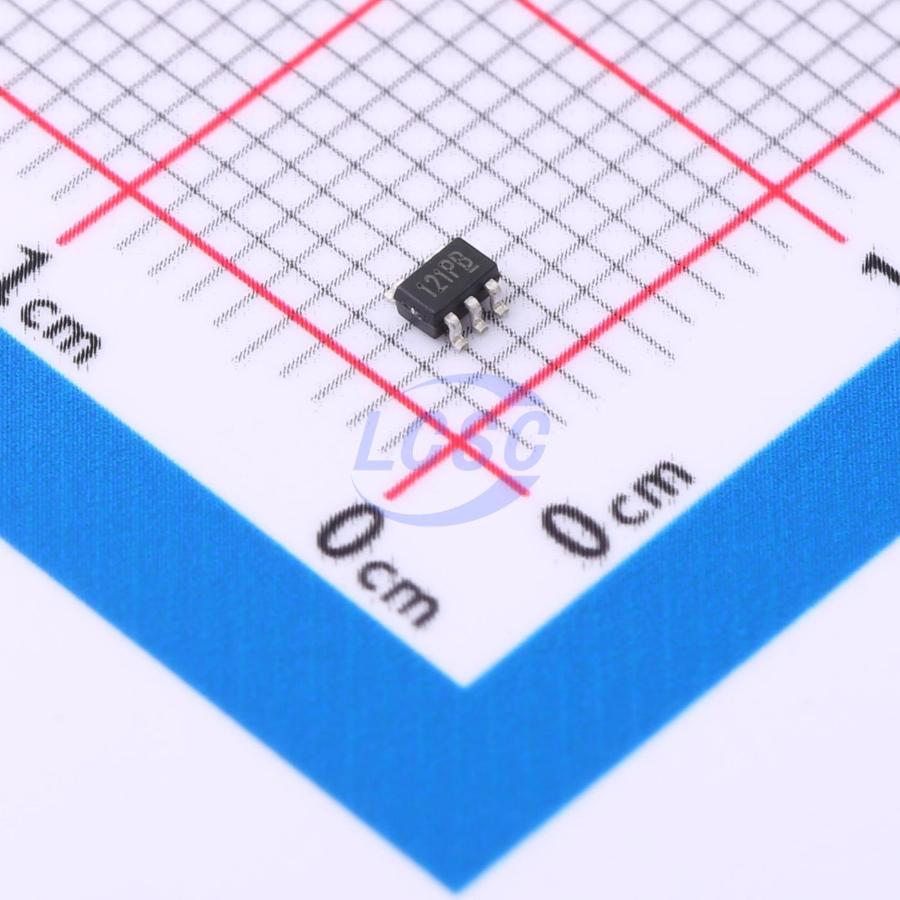

RS121PXC5
35mA 1 600uV 40V/ms 80dB 10pA 100kHz 7.6uA Rail-to-Rail Input, Rail-to-Rail Output SC70-5 Instrumentation, Op Amps, Buffer Amps
SC70-5RoHSActive
100kHz, Rail-to-Rail I/O CMOS Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS121PXC5
- Store part #
- C5372433
- Package / case
- SC70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,600 in stock
#C5372433
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.89 | ₹164.45 |
| 50+ | ₹24.57 | ₹1,228.50 |
| 150+ | ₹21.00 | ₹3,150.00 |
| 500+ | ₹16.54 | ₹8,270.00 |
5 × ₹32.89
₹164.45
excl. GST
₹194.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS121PXC5
₹164.45 for 5 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 600uV
- Slew Rate
- 40V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 2.5uV/℃
- Gain Bandwidth Product
- 100kHz
- Quiescent Current
- 7.6uA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 98nV/√Hz@1kHz
- Dual Supply
- -1.3V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.6V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The RS121P, RS122P, RS124P families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (100kHz) and slew rate of 0.04V/μs. The op-amps are unity gain stable and feature an ultra-low input bias current. The RS121P, RS122P, RS124P families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.6V to 5.5V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT
- DRIVING A/D CONVERTERS
Key features
- GAIN BANDWIDTH: 100kHz
- RAIL-TO-RAIL INPUT AND OUTPUT ±0.6mV Max Vos INPUT VOLTAGE RANGE: -0.2V to +5.7V with VS = 5.5V
- SUPPLY RANGE: +2.6V to +5.5V
- SPECIFIED UP TO ±125°C
- Micro SIZE PACKAGES: SOT23-5, SOT353(SC70-5)
