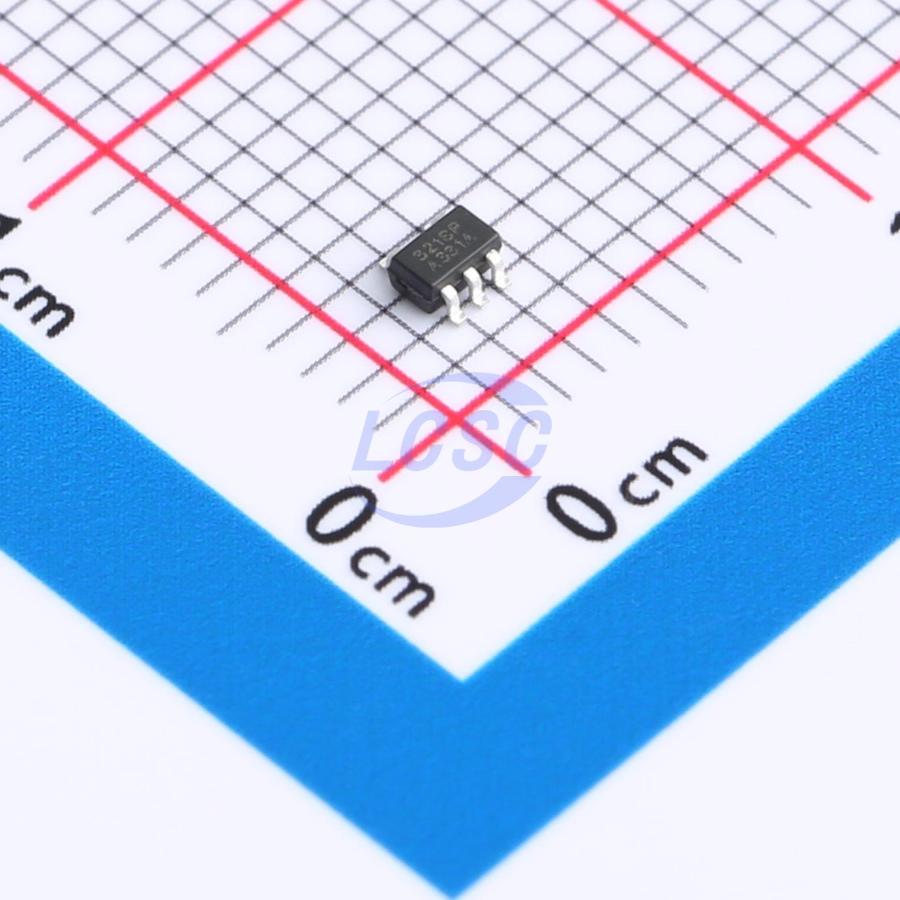

RS321BPXC5

110mA 1 500uV 500V/ms 92dB 10pA 150uA 1.1MHz Rail-to-Rail Input, Rail-to-Rail Output SC70-5 Instrumentation, Op Amps, Buffer Amps RoHS

SC70-5ROHS CompliantActive

Precision, Rail-to-Rail I/O CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS321BPXC5
Store part #: C7502520
Package / case: SC70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,740 in stock

#C7502520

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹23.51	₹117.55
50+	₹17.57	₹878.50
150+	₹14.61	₹2,191.50
500+	₹12.38	₹6,190.00

Quantity (min 5, multiples of 5)

5 × ₹23.51

₹117.55

excl. GST

₹138.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS321BPXC5

₹117.55 for 5 + GST

Specifications

Output Current: 110mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 92dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 150uA
Gain Bandwidth Product: 1.1MHz
Input Voltage Noise Density: 22nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: 1.05V~2.75V;-2.75V~-1.05V
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.05 g

Overview

The RS321P, RS321BP families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The RS321P, RS321BP has lower offset, which is guaranteed not upper than 0.5mV at 25°C with Vs = 5V, VCM = Vs/2. The devices are ideal for sensor interfaces, active filters and portable applications. The RS321P, RS321BP families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single supplies of 2.1V to 5.5V or dual power supplies of ±1.05V to ±2.75V. The RS321P, RS321BP devices are unity-gain stable, single-channel op amps with low noise and distortion. The device consists of a low noise input stage with a folded cascade and a rail-to-rail output stage. This topology exhibits superior noise and distortion performance across a wide range of supply voltages that are not delivered by legacy commodity audio operational amplifiers.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT DRIVING A/D CONVERTERS

Key features

HIGH GAIN BANDWIDTH: 1.1MHz
RAIL-TO-RAIL INPUT AND OUTPUT 0.5mV Max Vos
INPUT VOLTAGE RANGE: -0.2V to +5.78V with Vs = 5.5V
SUPPLY RANGE: +2.1V to +5.5V
SPECIFIED UP TO +125°C
Micro SIZE PACKAGES: SOT23-5, SC70-5
