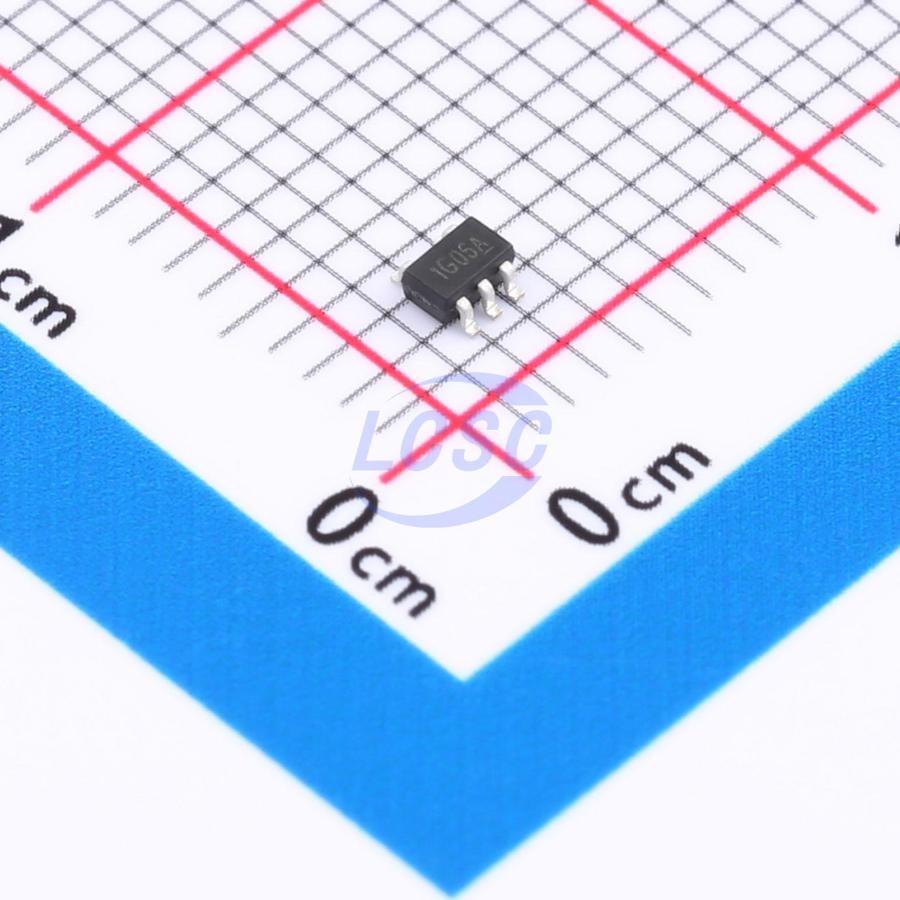

RUNIC

RS1G06XC5

1.65V~5.5V 1 1 3.7ns@5V,50pF SC70-5 Buffers, Drivers, Receivers, Transceivers

SC70-5RoHSActive

Manufacturer: RUNIC
Manufacturer part #: RS1G06XC5
Store part #: C5372439
Package / case: SC70-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,595 in stock

#C5372439

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹5.73	₹5.73

Quantity (min 1)

1 × ₹5.73

₹5.73

excl. GST

₹6.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS1G06XC5

₹5.73 for 1 + GST

Specifications

Function: Power-off isolation
Series: RS1G06
Voltage - Supply: 1.65V~5.5V
Output Type: Open-drain
Current - Output Low(IOL): 24mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 10uA
Propagation Delay: 3.7ns@5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.041 g

Overview

The RS1G06 single inverter buffer/driver is designed for Vcc operating voltages from 1.65V to 5.5V. The device features open-drain outputs that can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The device is fully suitable for partial power-down applications through its Ioff characteristic. The Ioff circuit disables the outputs to prevent damaging current backflow when the device is powered down. The RS1G06 is available in green, environmentally friendly SOT23-5 and SC70-5 packages, with an operating temperature range of -40°C to +125°C.

Applications

Blu-ray players and home theater
Desktop or laptop PC
Digital camcorders
Mobile phones
Personal navigation devices

Key features

Operating voltage range: 1.65V to 5.5V
Low power consumption: 1μA (maximum)
Operating temperature range: -40°C to +125°C
Input and open-drain output tolerant to 5.5V
High output drive capability: ±24mA at Vcc = 3.0V
Compact package: SOT23-5, SC70-5
