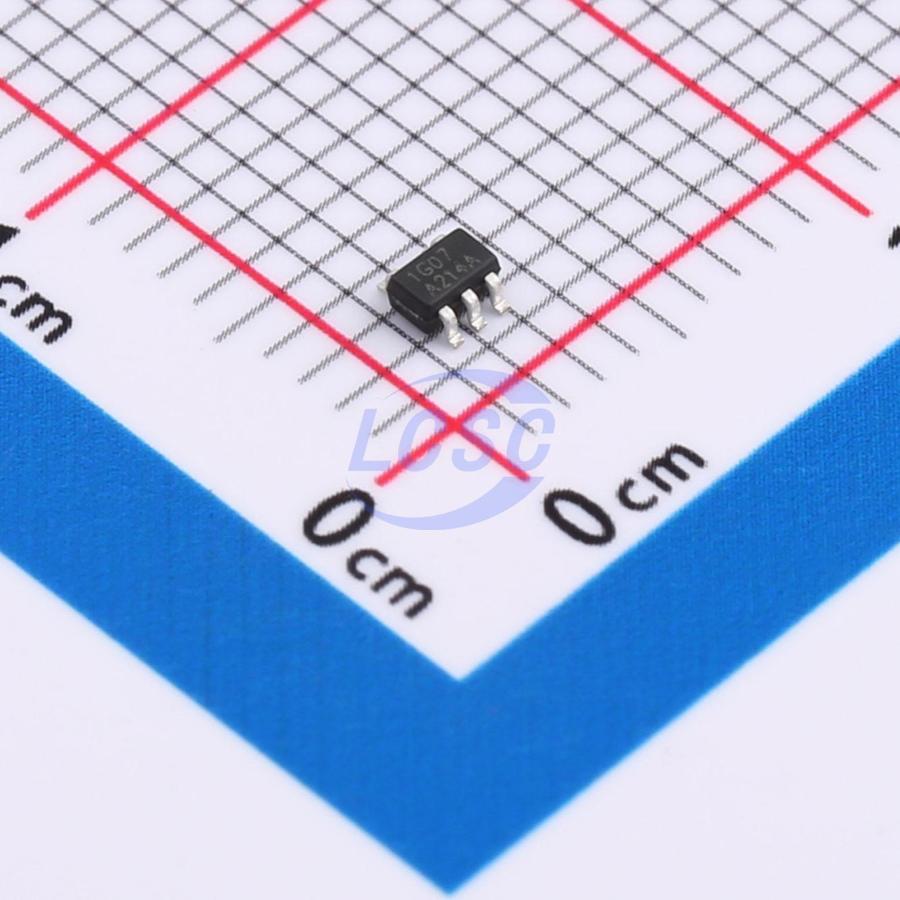

RUNIC

RS1G07XC5

1.65V~5.5V 1 1 3.7ns@5V,50pF SC70-5 Buffers, Drivers, Receivers, Transceivers

SC70-5RoHSActive

Single Buffer/Driver with Open-Drain Output

Manufacturer: RUNIC
Manufacturer part #: RS1G07XC5
Store part #: C5372441
Package / case: SC70-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,410 in stock

#C5372441

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹13.06	₹130.60
100+	₹9.42	₹942.00
300+	₹7.59	₹2,277.00

Quantity (min 10, multiples of 10)

10 × ₹13.06

₹130.60

excl. GST

₹154.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS1G07XC5

₹130.60 for 10 + GST

Specifications

Function: Power-off isolation
Voltage - Supply: 1.65V~5.5V
Output Type: Open-drain
Current - Output Low(IOL): 24mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 1uA
Propagation Delay: 3.7ns@5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.037 g

Overview

Operating Voltage Range:1.65V to 5.5V • Low Power Consumption: 1μA (Max) Operating Temperature Range: -40°C to ±125°C Input and Open-Drain Output accept Voltage to 5.5V High Output Drive: ±24mA at VCC = 3.0V Micro SIZE PACKAGES: SOT23-5, SC70-5 The RS1G07 Single buffer and driver is designed for 1.65V to 5.5V VCC operation. The RS1G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The device is fully specified for partialpower-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

Blu-ray Players and Home Theaters
Desktops or Notebook PCs
Digital Video Cameras (DVC)
Mobile Phones
Personal Navigation Device (GPS)
Portable Media Player

Key features

Operating Voltage Range: 1.65V to 5.5V
Low Power Consumption: 1μA (Max)
Operating Temperature Range: -40°C to ±125°C
Input and Open-Drain Output accept Voltage to 5.5V
High Output Drive: ±24mA at VCC = 3.0V
Micro SIZE PACKAGES: SOT23-5, SC70-5
