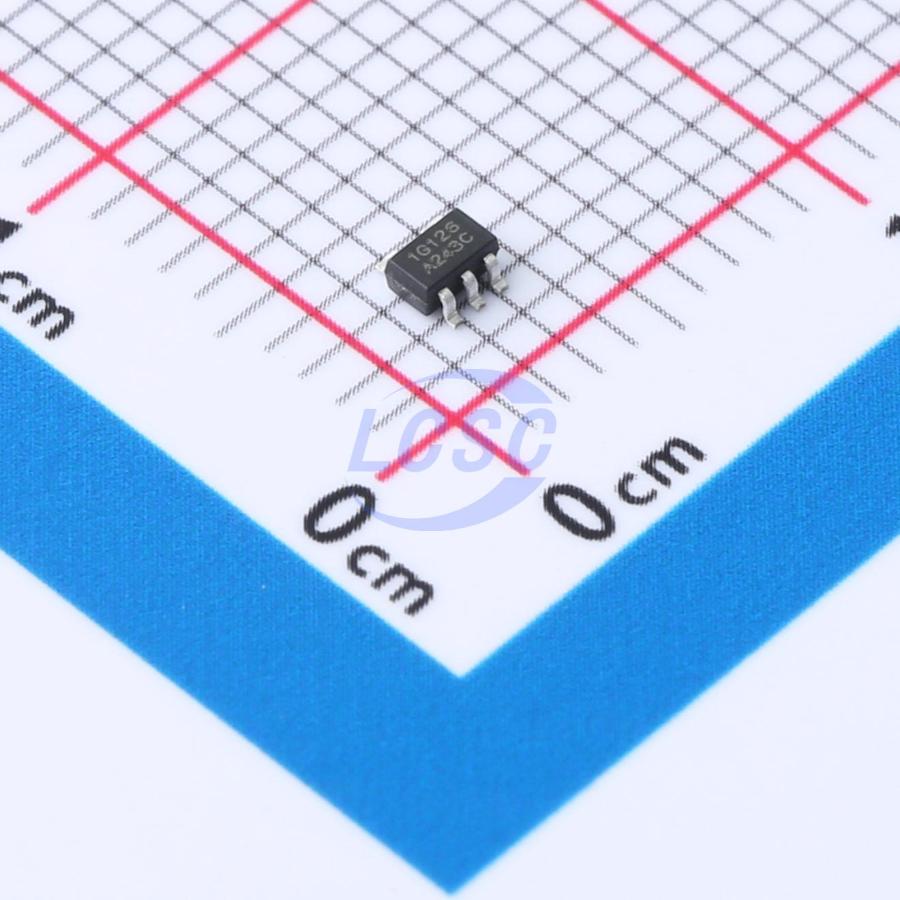

RUNIC

RS1G126XC5

1.65V~5.5V 1 1 2.9ns@5V,50pF SC70-5 Buffers, Drivers, Receivers, Transceivers

SC70-5RoHSActive

Single Bus Buffer Gate With 3-State Output

Manufacturer: RUNIC
Manufacturer part #: RS1G126XC5
Store part #: C5372446
Package / case: SC70-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,640 in stock

#C5372446

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹14.42	₹144.20
100+	₹10.78	₹1,078.00
300+	₹8.96	₹2,688.00
3,000+	₹7.59	₹22,770.00

Quantity (min 10, multiples of 10)

10 × ₹14.42

₹144.20

excl. GST

₹170.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS1G126XC5

₹144.20 for 10 + GST

Specifications

Voltage - Supply: 1.65V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 1uA
Function: Output enable;Power-off isolation
Current - Output High(IOH): 24mA
Current - Output Low(IOL): 24mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Propagation Delay: 2.9ns@5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.041 g

Overview

Operating Voltage Range: 1.65V to 5.5V • Low Power Consumption: 1μA (Max) Operating Temperature Range: -40°C to +125°C Inputs Accept Voltage to 5.5V • ±24mA Output Drive at VCC = 3.0V • Latch-up Performance Exceeds 100mA Micro SIZE PACKAGES: SOT23 - 5, SC70 - 5

Applications

AV Receiver
Cable Modem Termination Systems
Digital Picture Frame (DPF)
High - Speed Data Acquisition and Generation
Motor Controls: High - Voltage
Personal Navigation Device (GPS)
Portable Media Player
Video Communication Systems

Key features

Operating Voltage Range: 1.65V to 5.5V
Low Power Consumption: 1μA (Max)
Operating Temperature Range: -40°C to +125°C
Inputs Accept Voltage to 5.5V
±24mA Output Drive at VCC = 3.0V
Latch - up Performance Exceeds 100mA
Micro SIZE PACKAGES: SOT23 - 5, SC70 - 5
