RUNICDatasheet (PDF)

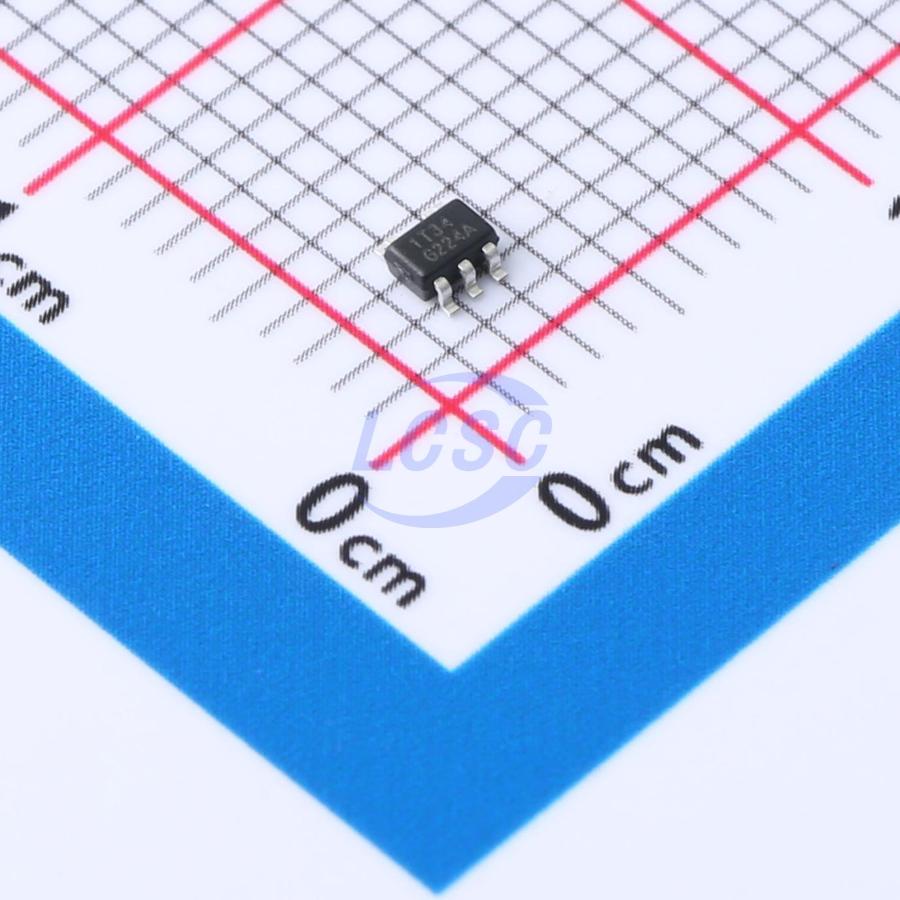

RS1T34XC5
1.65V~5.5V 1 1 SC70-5 Buffers, Drivers, Receivers, Transceivers
SC70-5RoHSActive
1-Bit Dual-Supply Unidirectional Bus Transceiver
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1T34XC5
- Store part #
- C5372458
- Package / case
- SC70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,890 in stock
#C5372458
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.89 | ₹129.45 |
| 50+ | ₹19.33 | ₹966.50 |
| 150+ | ₹16.52 | ₹2,478.00 |
| 500+ | ₹13.02 | ₹6,510.00 |
5 × ₹25.89
₹129.45
excl. GST
₹152.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1T34XC5
₹129.45 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The RS1T34 is 1-bit non-inverting bus transceiver uses two separate configurable power supply rails. The A port is designed to track VCCA, which supporting operating voltages from 1.65V to 5.5V, and the B port supporting operating voltages from 1.65V to 5.5V while it tracks the VCCB supply. This allows for universal low-voltage unidirectional translation between any of the 1.8V, 2.5V, 3.3V and 5V voltage nodes. The RS1T34 is designed for asynchronous communication between two data buses. The A bus is input side, the B bus is output side.
Applications
- Industrial
- Enterprise Telecom, such as VOIP
- Personal electronic
Key features
- Power-Supply Range: VCCA and VCCB: 1.65V to 5.5V
- VCC Isolation: If Either VCC is at GND, Both Ports are in the High-Impedance State
- Low power consumption, μA Max
- Output drive up to ±24mA @ 3.0V
- No Power-Supply Sequencing Required: Either VCCA or VCCB can be Ramped First
- IOFF: Supports Partial-Power-Down Mode Operation
- Extended Temperature: -40°C to ±125°C
