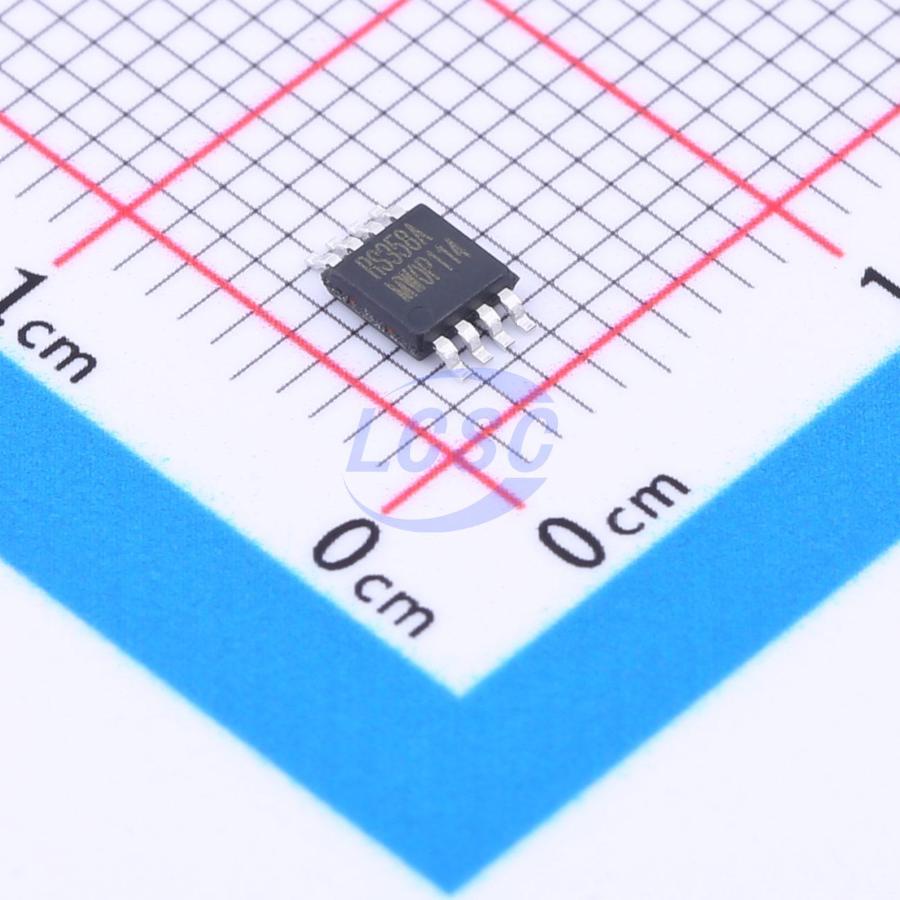

RS358AXM

130mA 2 4.5mV 500V/ms 90dB 100pA 120uA 1.1MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS3 CompliantActive

1.1MHz, Precision, Rail-to-Rail I/O CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS358AXM
Store part #: C2898697
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,860 in stock

#C2898697

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹19.78	₹98.90
50+	₹14.79	₹739.50
150+	₹12.29	₹1,843.50
500+	₹10.41	₹5,205.00

Quantity (min 5, multiples of 5)

5 × ₹19.78

₹98.90

excl. GST

₹116.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS358AXM

₹98.90 for 5 + GST

Specifications

Output Current: 130mA
Number of Channels: 2
Vos - Input Offset Voltage: 4.5mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 100pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 120uA
Gain Bandwidth Product: 1.1MHz
Features: Built-in compensation
Input Voltage Noise Density: 22nV/√Hz@1kHz
Dual Supply: -1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.136 g

Overview

HIGH GAIN BANDWIDTH: 1.1MHz RAIL-TO-RAIL INPUT AND OUTPUT ±4.5mV Max Vos INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V SUPPLY RANGE: +2.5V to +5.5V SPECIFIED UP TO ±125°C Micro SIZE PACKAGES: SOIC-8 The RS358A products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The RS358A has lower offset, which is guaranteed not upper than ±4.5mV at 25°C with VS = 5V, VcM = Vs/2. The devices are ideal for sensor interfaces, active filters and portable applications. The RS358A families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT
DRIVING A/D CONVERTERS

Key features

HIGH GAIN BANDWIDTH: 1.1MHz
RAIL-TO-RAIL INPUT AND OUTPUT
±4.5mV Max Vos
INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V
SUPPLY RANGE: +2.5V to +5.5V
SPECIFIED UP TO ±125°C
Micro SIZE PACKAGES: SOIC-8
Low voltage operation
Excellent speed/power consumption ratio
Unity gain stable
Ultra-low input bias current
Lower offset, guaranteed not upper than ±4.5mV at 25°C with VS = 5V, VcM = Vs/2
