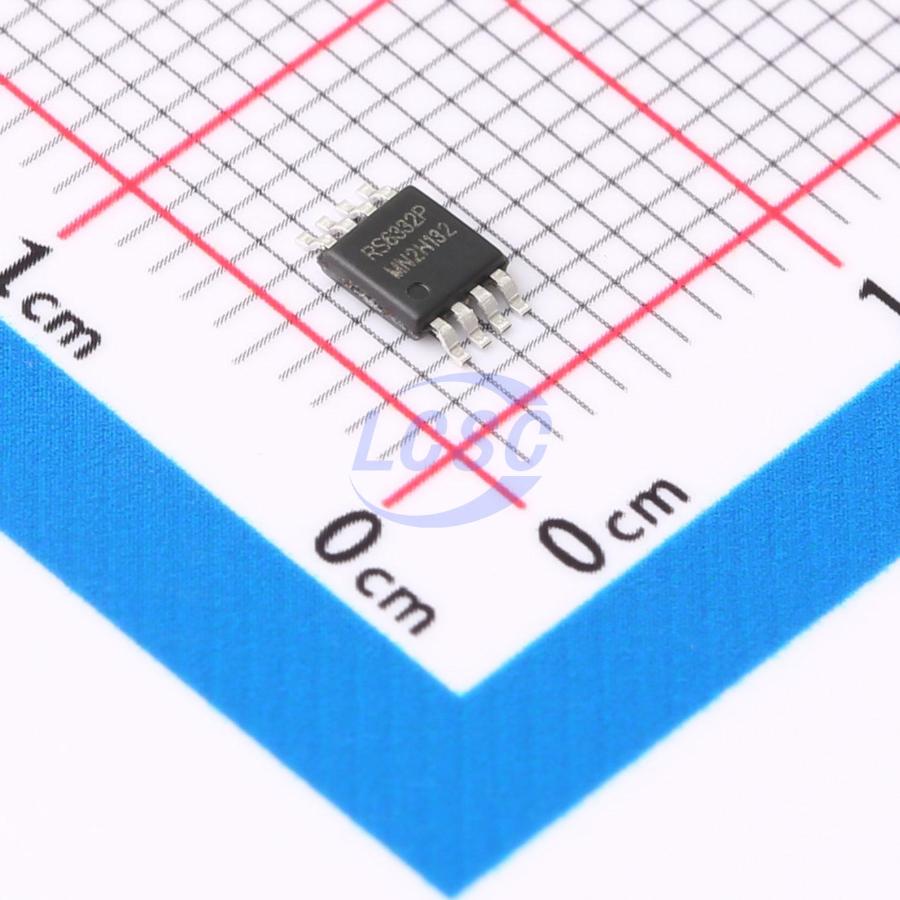

RS6332PXM

HIGH GAIN BANDWIDTH: 1.1MHz RAIL-TO-RAIL INPUT AND OUTPUT ±0.5mV Max Vos (RS6331P, RS6332P) ±0.8mV Max Vos (RS6334P) INPUT VOLTAGE RANGE: -0.1V to +5.68 with VS = 5.5V SUPPLY RANGE: +2.1V to +5.5V SPECIFIED UP TO ±125°C Micro SIZE PACKAGES: SOT23-5, SOT353(SC70-5) The RS6331P, RS6332P, RS6334P families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/μs. The op-amps are unity gain stable and feature an ultra-low input bias current. The RS6331P, RS6332P and RS6334P has lower offset, which is guaranteed not upper than ±0.5mV (RS6331P, RS6332P) / ±0.8mV (RS6334P) at 25°C with VS = 5V, VCM = Vs/2. The devices are ideal for sensor interfaces, active filters and portable applications. The RS6331P, RS6332P, RS6334P families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single supplies of 2.1V to 5.5V or dual power supplies of ±1.05V to ±2.75V. The RS633XP devices are unity-gain stable, dual and qual-channel op amps with low noise and distortion. The device consists of a low noise input stage with a folded cascade and a rail-to-rail output stage. This topology exhibits superior noise and distortion performance across a wide range of supply voltages that are not delivered by legacy commodity audio operational amplifiers. The RS633XP family has internal phase-reversal protection. The input of the RS633XP prevents phase reversal with excessive common-mode voltage. Instead, the appropriate rail limits the output voltage.

Applications

• SENSORS PHOTODIODE AMPLIFICATION
• ACTIVE FILTERS
• TEST EQUIPMENT DRIVING A/D CONVERTERS
