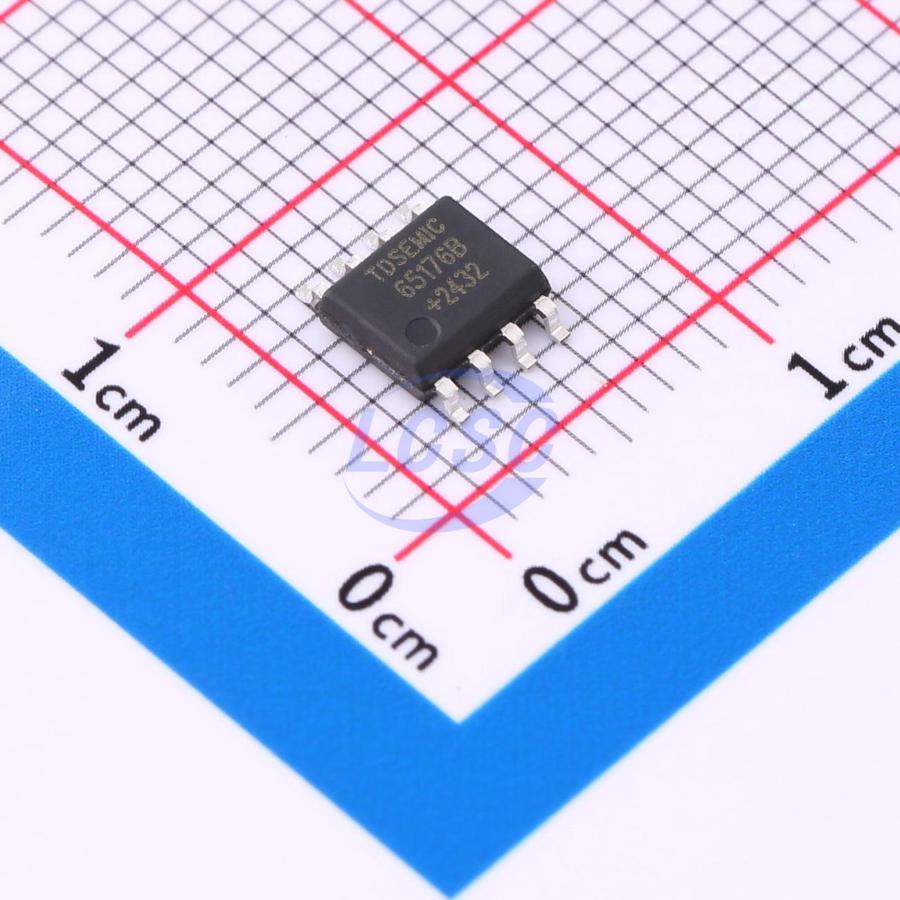

SN65176BDR-TD
1/1 Transceiver RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
SN65176BDR
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SN65176BDR-TD
- Store part #
- C41369789
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,770 in stock
#C41369789
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.37 | ₹111.85 |
| 50+ | ₹17.21 | ₹860.50 |
| 150+ | ₹14.99 | ₹2,248.50 |
| 500+ | ₹12.24 | ₹6,120.00 |
| 2,500+ | ₹10.99 | ₹27,475.00 |
| 5,000+ | ₹10.27 | ₹51,350.00 |
5 × ₹22.37
₹111.85
excl. GST
₹131.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN65176BDR-TD
₹111.85 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V~5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 700uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
This chip is a transceiver designed for RS-485 and RS-422 communication systems. It supports data transfer rates up to 2.5Mbps and operates in half-duplex mode. The chip features driver enable and receiver enable pins; when disabled, both the driver and receiver outputs enter a high-impedance state. Additionally, the device integrates a fail-safe function — when the input is open-circuit or short-circuit in receive mode, the receiver output is held high.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level translation
- EMI-resistant transceiver
- Industrial control LAN
Key features
- ESD protection: ±1500V Human Body Model
- Three-state output
- Half-duplex communication
- Bus supports up to 128 transceivers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX485CSA-TD#C41369780TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 3,180 | ₹27.44 · 3,180 in stock | View |
 | SN65HVD3082EDR-TD#C41369791TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,430 | ₹19.14 · 2,430 in stock | View |
 | MAX485ECSA-TD#C41369781TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 6,600 | ₹19.55 · 6,600 in stock | View |
 | MAX485EESA-TD#C41369782TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 3,940 | ₹43.70 · 3,940 in stock | View |
 | SN65176DR-TD#C41369790TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,365 | ₹18.31 · 2,365 in stock | View |
