TDSEMICDatasheet (PDF)

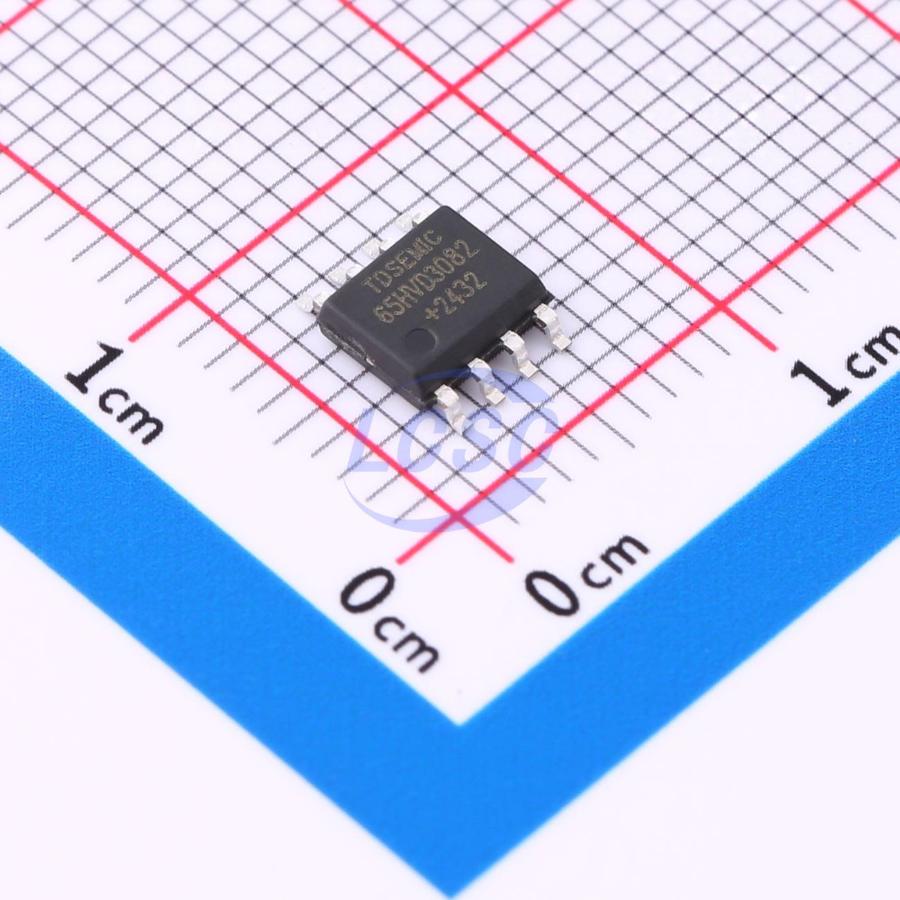

SN65HVD3082EDR-TD
1/1 Transceiver RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
Transceiver chips for RS-485 and RS-422 communication systems
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SN65HVD3082EDR-TD
- Store part #
- C41369791
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,430 in stock
#C41369791
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.14 | ₹95.70 |
| 50+ | ₹15.15 | ₹757.50 |
| 150+ | ₹13.15 | ₹1,972.50 |
| 500+ | ₹11.66 | ₹5,830.00 |
| 2,500+ | ₹10.46 | ₹26,150.00 |
| 5,000+ | ₹9.86 | ₹49,300.00 |
5 × ₹19.14
₹95.70
excl. GST
₹112.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN65HVD3082EDR-TD
₹95.70 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V~5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 700uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level translation
- EMI-resistant transceiver
- Industrial control LAN
Key features
- Tri-state outputs
- Half-duplex
- Bus supports up to 128 transceivers
