TDSEMICDatasheet (PDF)
MAX485EESA-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive

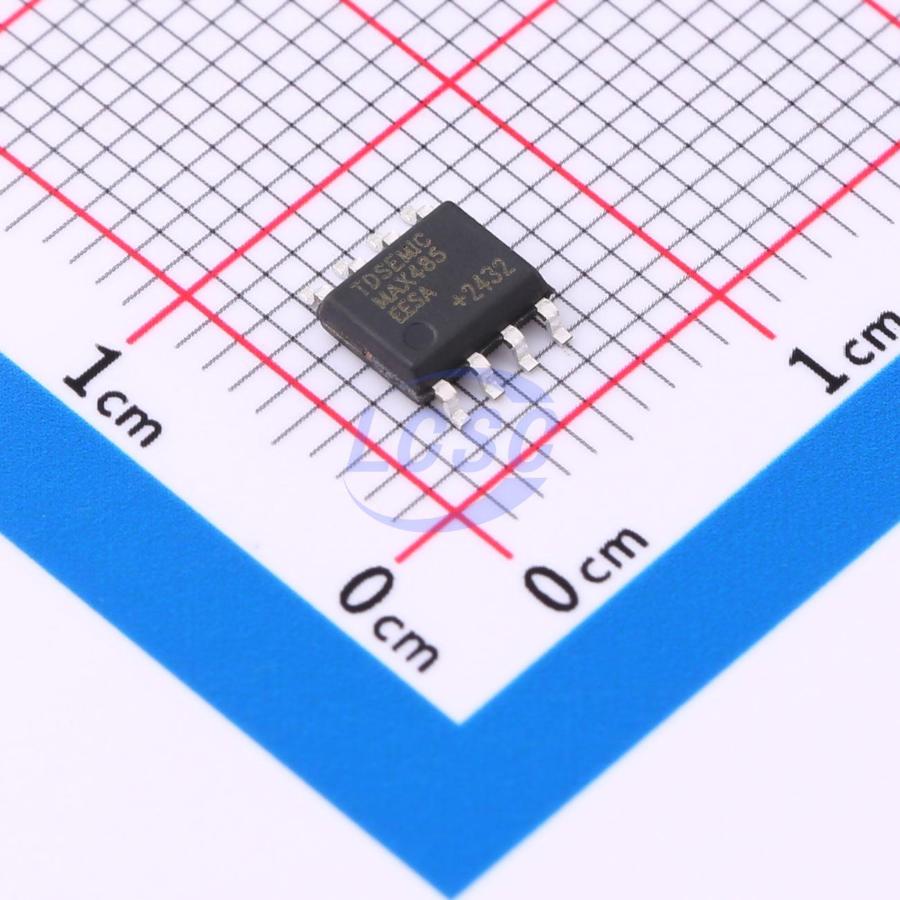

MAX485EESA RS-485/RS-422 Transceiver
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MAX485EESA-TD
- Store part #
- C41369782
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,935 in stock
#C41369782
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.70 | ₹218.50 |
| 50+ | ₹34.17 | ₹1,708.50 |
| 150+ | ₹30.10 | ₹4,515.00 |
| 500+ | ₹25.00 | ₹12,500.00 |
| 2,500+ | ₹22.74 | ₹56,850.00 |
| 5,000+ | ₹21.38 | ₹1,06,900.00 |
5 × ₹43.70
₹218.50
excl. GST
₹257.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX485EESA-TD
₹218.50 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V~5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.178 g
Overview
MAX485EESA is a transceiver IC designed for RS-485 and RS-422 communication systems. The HM485 supports data transmission rates of up to 2.5Mbps for both transmit and receive. The 485 operates in half-duplex mode. Additionally, the 485 features Driver Enable (DE) and Receiver Enable (RE) pins; when disabled, both the driver and receiver outputs enter a high-impedance state. The MAX485EESA incorporates a failsafe function, ensuring the receiver output remains high when the input is open-circuited or short-circuited during receive mode.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level shifting
- EMI-resistant transceiver
- Industrial control LAN
Key features
- ESD protection (ESD): ±1500V - Human Body Model (HBM)
- Three-state output half-duplex bus supports up to 128 transceivers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX485CSA-TD#C41369780TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 3,180 | ₹27.44 · 3,180 in stock | View |
 | SN65176BDR-TD#C41369789TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,770 | ₹22.37 · 2,770 in stock | View |
 | SN65176DR-TD#C41369790TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,365 | ₹18.31 · 2,365 in stock | View |
 | SN65HVD3082EDR-TD#C41369791TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,430 | ₹19.14 · 2,430 in stock | View |
 | SN75176DR-TD#C41369794TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 1,155 | ₹16.59 · 1,155 in stock | View |
