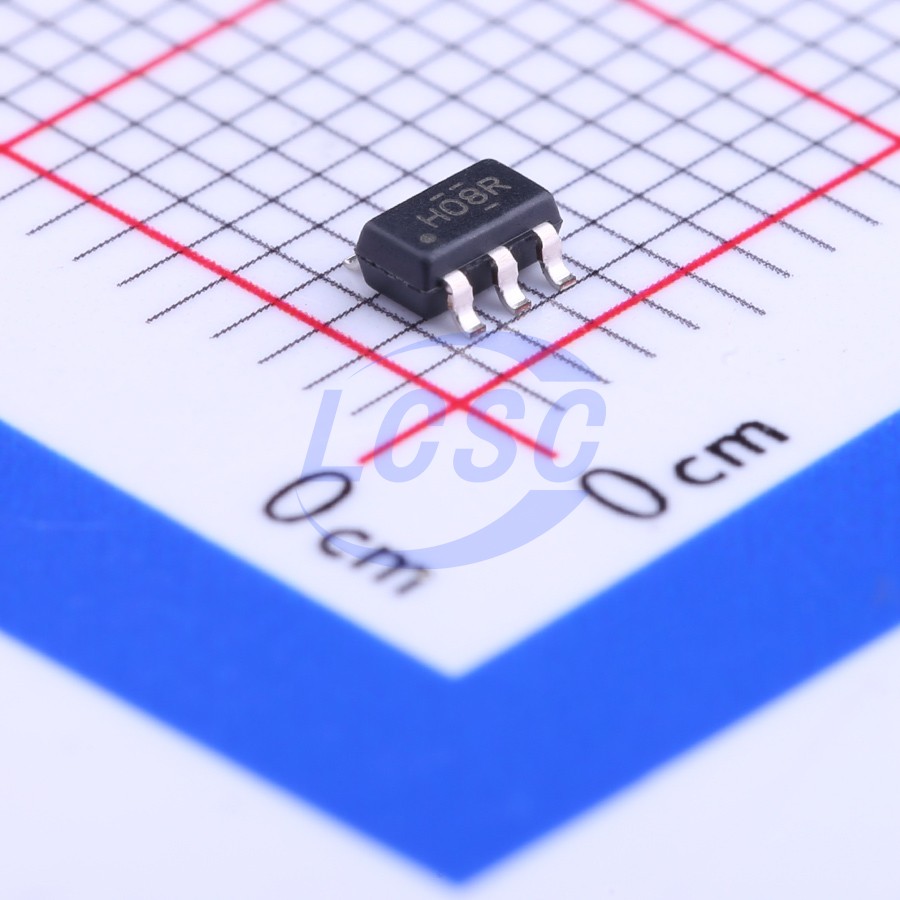

SN74AUP1G08DBVR

Schmitt trigger 800mV~3.6V 6.2ns@3.3V,30pF 500nA SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS CompliantActive

Low-Power Single 2-Input Positive-AND Gate

Manufacturer: TI
Manufacturer part #: SN74AUP1G08DBVR
Store part #: C139409
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,395 in stock

#C139409

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹37.07	₹185.35
50+	₹30.21	₹1,510.50
150+	₹27.27	₹4,090.50
500+	₹23.60	₹11,800.00
3,000+	₹20.71	₹62,130.00
6,000+	₹19.73	₹1,18,380.00

Quantity (min 5, multiples of 5)

5 × ₹37.07

₹185.35

excl. GST

₹218.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1G08DBVR

₹185.35 for 5 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74AUP Series
Voltage - Supply: 800mV~3.6V
Output Logic Level - Low: 450mV
Propagation Delay: 6.2ns@3.3V,30pF
Features: Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
Operating Temperature: -40℃~+85℃
Input Logic Level - Low: 700mV~900mV
Input Logic Level - High: 1.6V~2V
Output Logic Level - High: 2.6V
Quiescent Current(Iq): 500nA
Current - Output High(IOH): 4mA
Number of Channels: 1;2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

This single 2- input positive- AND gate is designed for 0.8 V to 3.6 V VCC operation and performs the Boolean function Y = A • B or Y = A(overline) + B(overline) in positive logic.

Applications

ATCA Solutions
Active Noise Cancellation (ANC) Barcode Scanner
Blood Pressure Monitor
CPAP Machine
Cable Solutions
DLP 3D Machine Vision, Hyperspectral Imaging, Optical Networking, and Spectroscopy
E- Book
Embedded PC
Field Transmitter: Temperature or Pressure Sensor
Fingerprint Biometrics
HVAC: Heating, Ventilating, and Air Conditioning
Network- Attached Storage (NAS)
Server Motherboard and PSU
Software Defined Radio (SDR)
TV: High- Definition (HDTV), LCD, and Digital- Video Communications System
Wireless Data Access Card, Headset, Keyboard, Mouse, and LAN Card
X- ray: Baggage Scanner, Medical, and Dental

Key features

Available in the Ultra Small 0.64 mm² Package (DPW) With 0.5 mm Pitch
Low Static- Power Consumption: ICC = 0.9 μA Maximum
Low Dynamic- Power Consumption: Cpd = 4.3 pF (Typical at 3.3 V)
Low Input Capacitance: Ci = 1.5 pF (Typical)
Low Noise: Overshoot and Undershoot < 10% of VCC
Ioff Supports Live Insertion, Partial- Power- Down Mode, and Back Drive Protection
Schmitt- Trigger Action Allows Slow Input Transition and Better Switching Noise Immunity at the Input (Vhys = 250 mV Typical at 3.3 V)
Wide Operating VCC Range of 0.8 V to 3.6 V
Optimized for 3.3 V Operation
3.6- V I/O Tolerant to Support Mixed- Mode Signal Operation
tpd = 4.3 ns Maximum at 3.3 V
Suitable for Point- to- Point Applications
Latch- Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
2000- V Human- Body Model (A114- B, Class II)
1000- V Charged- Device Model (C101)
