UMWDatasheet (PDF)

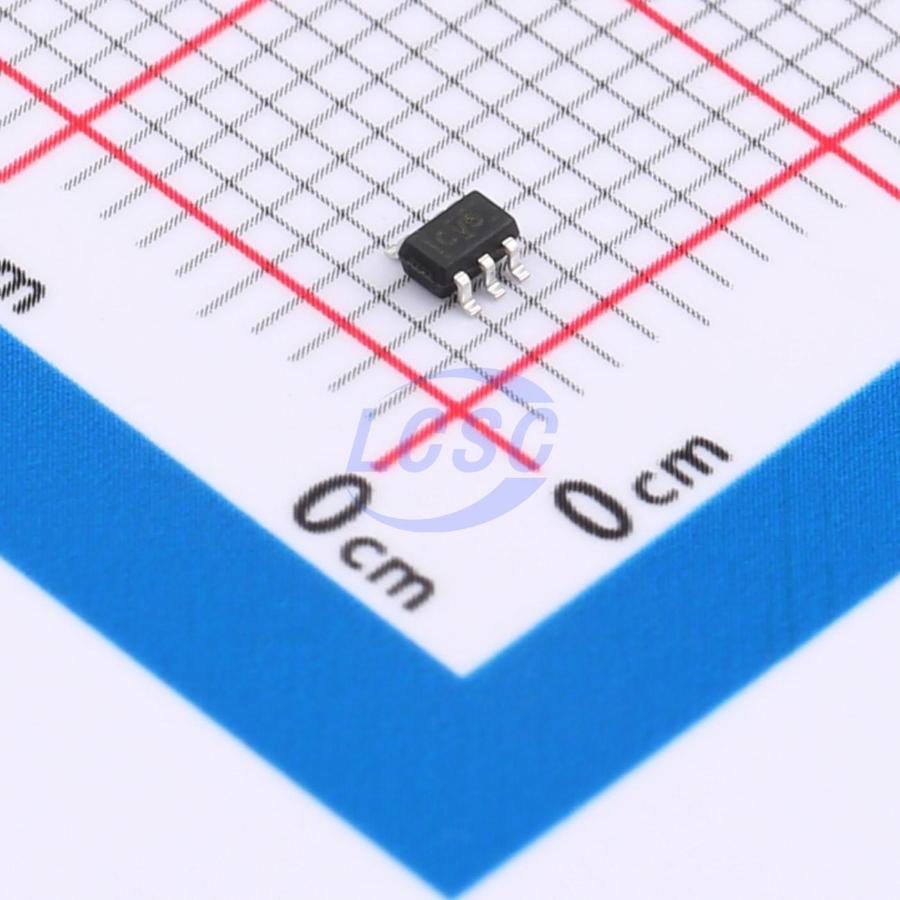

SN74LVC1G07DCKR(UMW)
1.65V~5.5V 1 1 3.9ns@5V,15pF SC-70-5 Buffers, Drivers, Receivers, Transceivers
SC-70-5RoHSActive
Single-channel non-inverting buffer with open-drain output
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC1G07DCKR(UMW)
- Store part #
- C7394033
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,370 in stock
#C7394033
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.58 | ₹458.00 |
| 300+ | ₹3.94 | ₹1,182.00 |
| 3,000+ | ₹3.47 | ₹10,410.00 |
| 6,000+ | ₹3.10 | ₹18,600.00 |
| 9,000+ | ₹2.90 | ₹26,100.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G07DCKR(UMW)
₹58.50 for 10 + GST
Specifications
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+85℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 3.9ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
This device is a high-performance single non-inverting buffer with open-drain output, operating over a supply voltage range of 1.65V to 5.5V. The output stage is overvoltage-tolerant, enabling the device to interface between 5.0V circuits and any voltage circuit between 0V and +7.0V.
Applications
- Consumer Electronics
- Industrial Control
- Automotive Electronics
- Medical Devices
- Communications Equipment
Key features
- Miniature SC70-5, SOT23-5, and DFN6-1.0mm×1.5mm packages
- Designed for 1.65V to 5.5V VCC operation
- 24mA output sink current capability with pull-up voltage from 0V to 7.0V
- Near-zero quiescent supply current for significantly reduced system power requirements
- Lead-free and RoHS compliant
