UMWDatasheet (PDF)

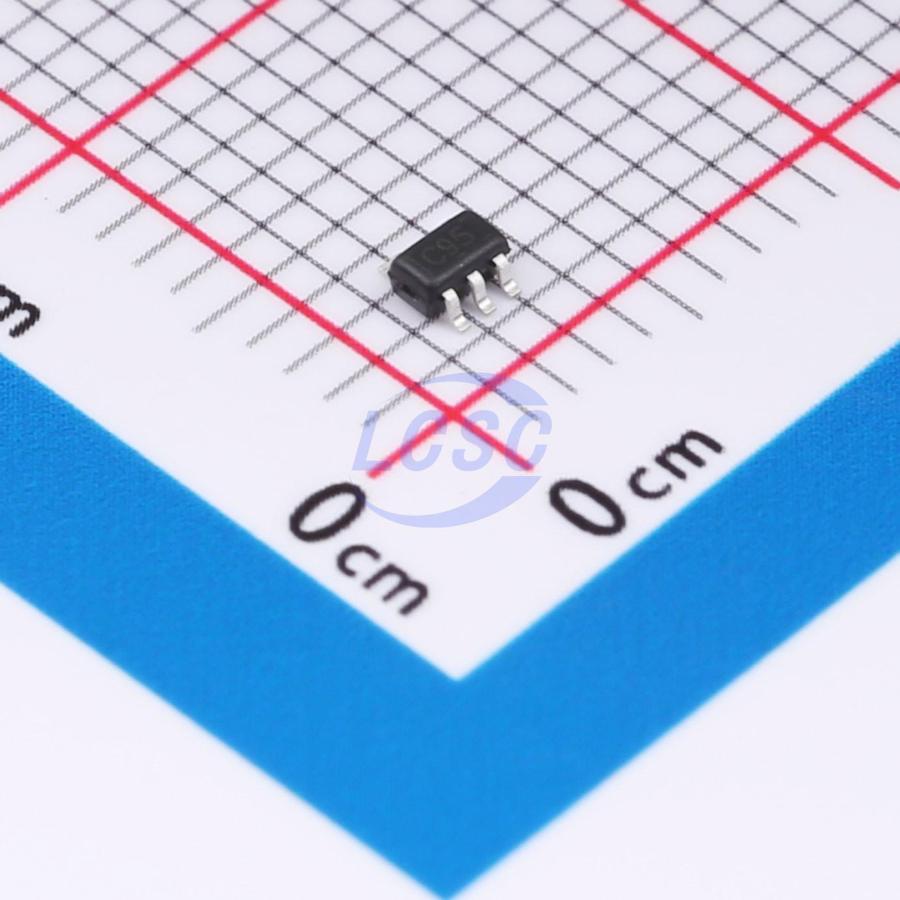

SN74LVC1G34DCKR(UMW)
1.65V~5.5V 1 1 5ns@3.3V,15pF SC-70-5 Buffers, Drivers, Receivers, Transceivers
SC-70-5RoHSActive
Single Buffer Operating from 1.65 to 5.5 V Supply
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC1G34DCKR(UMW)
- Store part #
- C7394031
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,360 in stock
#C7394031
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.82 | ₹38.20 |
| 100+ | ₹3.33 | ₹333.00 |
| 300+ | ₹3.10 | ₹930.00 |
| 3,000+ | ₹2.91 | ₹8,730.00 |
| 6,000+ | ₹2.77 | ₹16,620.00 |
| 9,000+ | ₹2.70 | ₹24,300.00 |
10 × ₹3.82
₹38.20
excl. GST
₹45.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G34DCKR(UMW)
₹38.20 for 10 + GST
Specifications
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 5ns@3.3V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
UMW SN74LVC1G34 is a single buffer operating over a supply voltage range of 1.65V to 5.5V. The device is fabricated using advanced CMOS technology, achieving ultra-high speed and high output drive capability while maintaining low quiescent power consumption.
Key features
- Compact SC70-5, SOT23-5, and DFN6-1.0mm×1.5mm packages
- 24mA source/sink current at 3.0V
- Overvoltage-tolerant inputs
- Designed for 1.65V to 5.5V VCC operation
- Lead-free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G126DCKR(UMW)#C7394032UMW · SC-70-5 | UMW | SC-70-5 | 56,370 | ₹5.31 · 56,370 in stock | View |
 | SN74LVC1G125DCKR(UMW)#C7394030UMW · SC-70-5 | UMW | SC-70-5 | 13,170 | ₹5.91 · 13,170 in stock | View |
 | SN74LVC1G17DCKR(UMW)#C7394034UMW · SC-70-5 | UMW | SC-70-5 | 3,690 | ₹6.47 · 3,690 in stock | View |
 | SN74LVC1G07DCKR(UMW)#C7394033UMW · SC-70-5 | UMW | SC-70-5 | 3,090 | ₹5.85 · 3,090 in stock | View |
