UMWDatasheet (PDF)

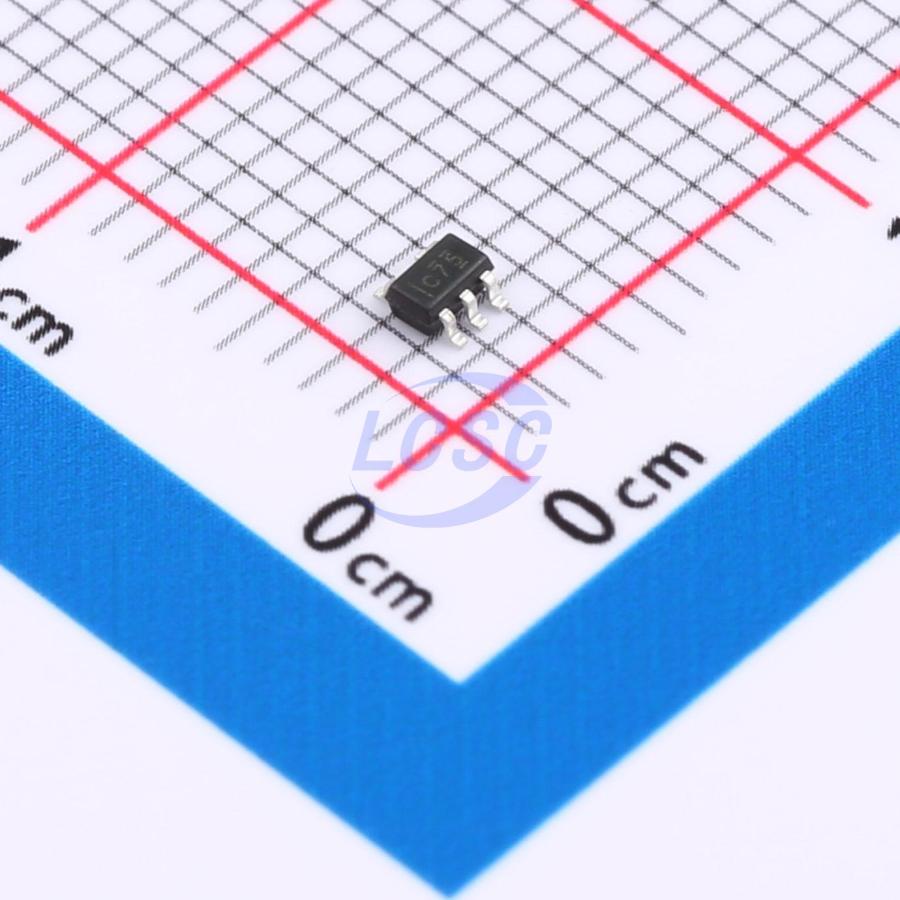

SN74LVC1G17DCKR(UMW)
Schmitt trigger 1.65V~5.5V 1 1 2.9ns@3.3V,50pF SC-70-5 Buffers, Drivers, Receivers, Transceivers
SC-70-5RoHSActive
Single Non-inverting Schmitt Trigger Buffer
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC1G17DCKR(UMW)
- Store part #
- C7394034
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,690 in stock
#C7394034
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.47 | ₹64.70 |
| 100+ | ₹5.08 | ₹508.00 |
| 300+ | ₹4.38 | ₹1,314.00 |
| 3,000+ | ₹3.86 | ₹11,580.00 |
| 6,000+ | ₹3.44 | ₹20,640.00 |
| 9,000+ | ₹3.24 | ₹29,160.00 |
10 × ₹6.47
₹64.70
excl. GST
₹76.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G17DCKR(UMW)
₹64.70 for 10 + GST
Specifications
- Current - Output High(IOH)
- 24mA
- Input type
- Schmitt trigger
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -55℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 2.9ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
SN74LVC1G17 is a single non-inverting Schmitt-trigger buffer available in three ultra-small packages.
Applications
- Consumer Electronics
- Industrial Control
- Automotive Electronics
Key features
- Available in ultra-small SC70-5, SOT23-5, and DFN6-1.0mm×1.5mm packages
- Source/sink current capability of 24mA at 3.0V
- Die complexity: 20 FETs
- Operating voltage range: 1.65V to 5.5VCC
- Lead-free, halogen-free/bromine-free flame retardant, RoHS compliant
