UMWDatasheet (PDF)

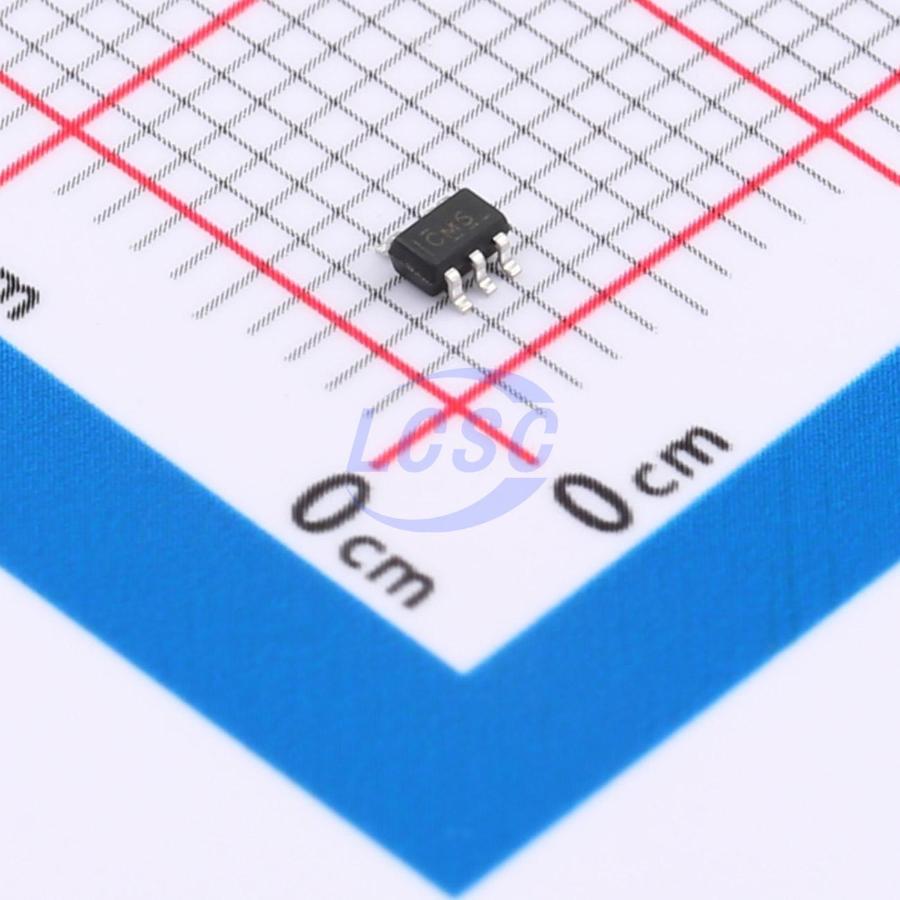

SN74LVC1G125DCKR(UMW)
Buffer SC-70-5
SC-70-5RoHSActive
High-performance non-inverting buffer
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC1G125DCKR(UMW)
- Store part #
- C7394030
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,240 in stock
#C7394030
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.91 | ₹59.10 |
| 100+ | ₹4.66 | ₹466.00 |
| 300+ | ₹4.04 | ₹1,212.00 |
| 3,000+ | ₹3.44 | ₹10,320.00 |
| 6,000+ | ₹3.07 | ₹18,420.00 |
| 9,000+ | ₹2.88 | ₹25,920.00 |
10 × ₹5.91
₹59.10
excl. GST
₹69.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G125DCKR(UMW)
₹59.10 for 10 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 4.4ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
UMW SN74LVC1G125 is a high-performance non-inverting buffer operating over a voltage range of 1.65V to 5.5V. The device is fabricated using advanced CMOS technology to achieve ultra-high speed and strong output drive capability.
Key features
- Designed for 1.65V to 5.5V Vcc operation
- Overvoltage-tolerant inputs
- 24 mA balanced output sink and source current capability
- Near-zero quiescent supply current, significantly reducing system power consumption requirements
- Lead-free and RoHS compliant
- Three-state OE input, active low
