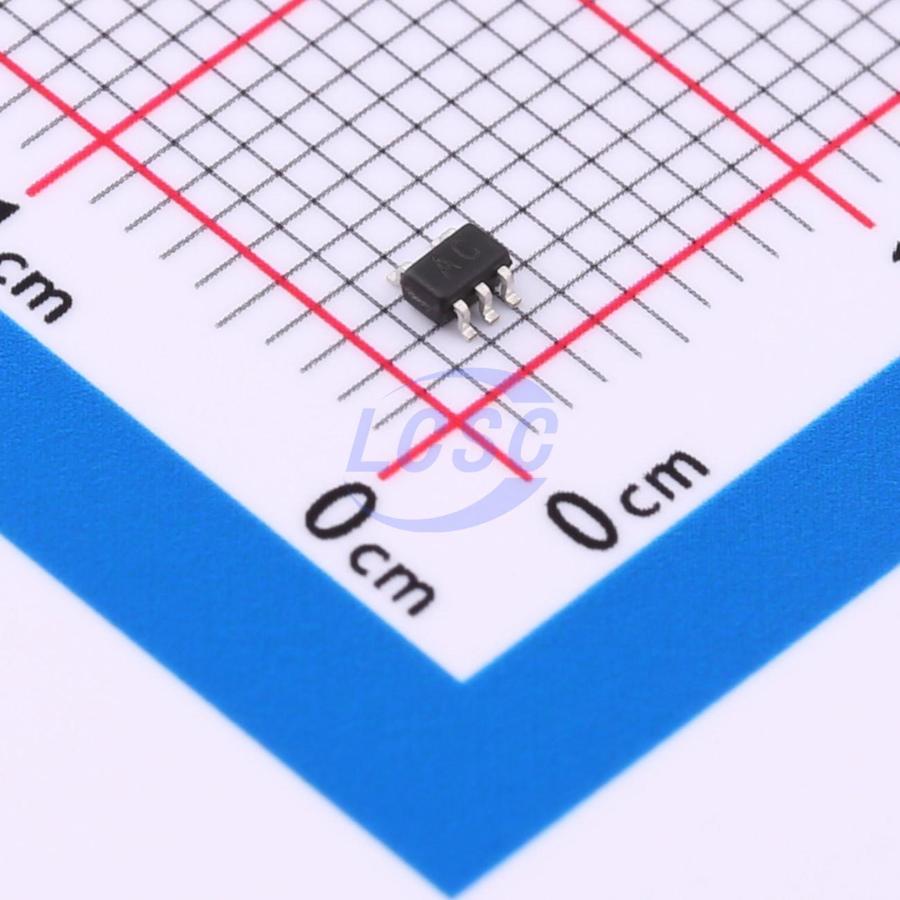

SN74LVC1G125T353(XBLW)
1.65V~5.5V 1 1 6.3ns@3.3V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS CompliantActive
Single Bus Buffer Gate With 3-State Output
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LVC1G125T353(XBLW)
- Store part #
- C41408442
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C41408442
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.45 | ₹54.50 |
| 100+ | ₹4.31 | ₹431.00 |
| 300+ | ₹3.74 | ₹1,122.00 |
| 3,000+ | ₹3.32 | ₹9,960.00 |
| 6,000+ | ₹2.98 | ₹17,880.00 |
| 9,000+ | ₹2.80 | ₹25,200.00 |
10 × ₹5.45
₹54.50
excl. GST
₹64.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G125T353(XBLW)
₹54.50 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+105℃
- Quiescent Supply Current
- 4uA
- Function
- Output enable;Power-off isolation
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 6.3ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The SN74LVC1G125 provides one non- inverting buffer/line driver with 3- state output. The 3- state output is controlled by the output enable input (OE). A HIGH- level at pin OE causes the output to assume a high- impedance OFF- state. The input can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. This device is fully specified for partial power- down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Applications
- Cable Modem Termination System
- High- Speed Data Acquisition and Generation
- Motor Control: High- Voltage
- Power Line Communication Modem
- SOD: Internal or External
- Video Broadcasting and Infrastructure: Scalable Platform
Key features
- ±24 mA output drive (VCC = 3.0 V)
- CMOS low power consumption
- Direct interface with TTL levels
- Latch- up performance exceeds 250 mA
- Overvoltage tolerant inputs to 5.5 V
- Wide supply voltage range from 1.65 V to 5.5 V
- Specked from - 40℃ to +105℃
- Packaging information: SOT- 23- 5/SOT- 353
