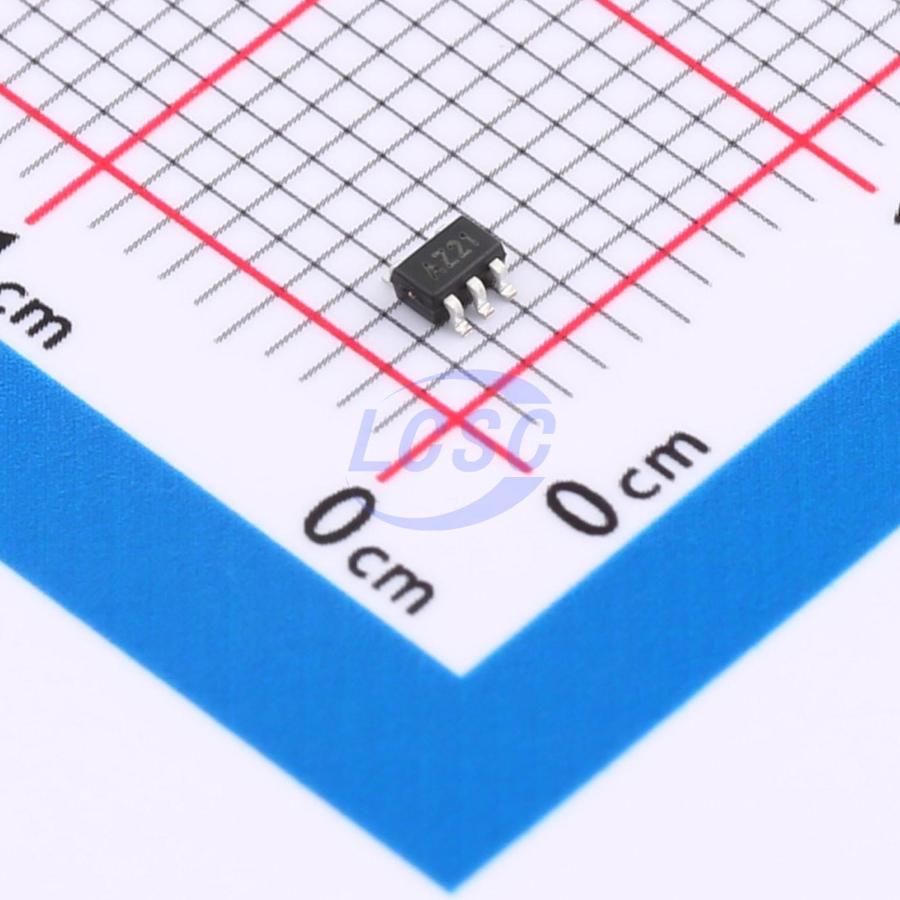

SN74LVC1G34T353(XBLW)
Schmitt trigger 1.65V~5.5V 1 1 8.5ns@3.3V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS CompliantActive
Single Buffer
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LVC1G34T353(XBLW)
- Store part #
- C41408440
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,270 in stock
#C41408440
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.67 | ₹66.70 |
| 100+ | ₹5.28 | ₹528.00 |
| 300+ | ₹4.58 | ₹1,374.00 |
| 3,000+ | ₹4.05 | ₹12,150.00 |
| 6,000+ | ₹3.64 | ₹21,840.00 |
| 9,000+ | ₹3.43 | ₹30,870.00 |
10 × ₹6.67
₹66.70
excl. GST
₹78.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G34T353(XBLW)
₹66.70 for 10 + GST
Specifications
- Function
- Level shifting
- Current - Output High(IOH)
- 24mA
- Input type
- Schmitt trigger
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Output Type
- Push-pull
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 8.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
The SN74LVC1G34 is a single buffer. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
Applications
- Audio Dock: Portable AV Receiver
- Blu-ray Player and Home Theater
- DVD Recorder and Player
- Embedded PC
- MP3 Player/Recorder (Portable Audio)
- Personal Digital Assistant (PDA)
- Solid State Drive (SSD): Client and Enterprise
- Tablet: Enterprise
- TV: LCD/Digital and High-Definition (HDTV)
- Video Analytics: Server
- Wireless Headset, Keyboard, and Mouse
- Power: Telecom/Server
- AC/DC Supply: Single
- Controller: Analog and Digital
Key features
- ±24 mA output drive (VCC = 3.0 V)
- 5V tolerant inputs for interfacing with 5V logic
- CMOS low power consumption
- Specified from -40°C to +125°C
- Wide supply voltage range from 1.65V to 5.5V
- Packaging information: SOT-23-5/SOT-353
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G17T353(XBLW)#C41408438XBLW · SOT-353 | XBLW | SOT-353 | 1,620 | ₹5.16 · 1,620 in stock | View |
 | SN74LVC1G126T353(XBLW)#C41408444XBLW · SOT-353 | XBLW | SOT-353 | 1,490 | ₹5.44 · 1,490 in stock | View |
 | SN74LVC1G125T353(XBLW)#C41408442XBLW · SOT-353 | XBLW | SOT-353 | 2,310 | ₹5.45 · 2,310 in stock | View |
