XBLWDatasheet (PDF)

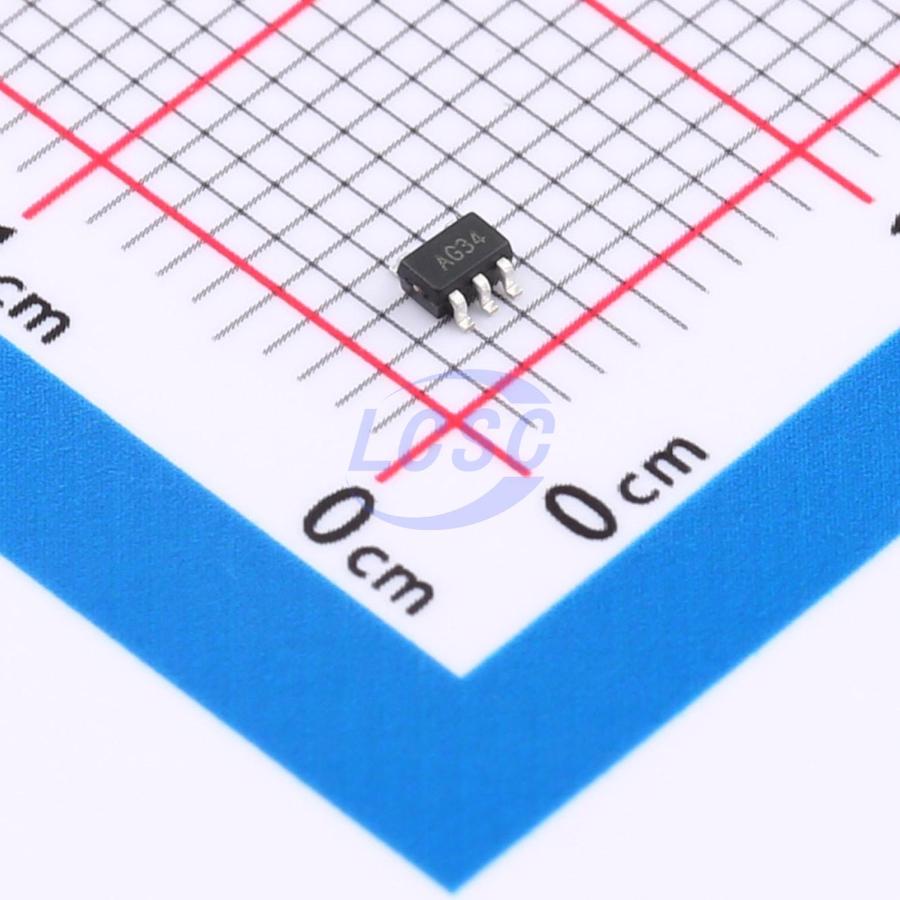

SN74LVC1G126T353(XBLW)
Schmitt trigger 1.65V~5.5V 1 1 6ns@3.3V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS CompliantActive
Single Bus Buffer Gate With 3-State Output
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LVC1G126T353(XBLW)
- Store part #
- C41408444
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,490 in stock
#C41408444
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.44 | ₹54.40 |
| 100+ | ₹4.30 | ₹430.00 |
| 300+ | ₹3.73 | ₹1,119.00 |
| 3,000+ | ₹3.29 | ₹9,870.00 |
| 6,000+ | ₹2.95 | ₹17,700.00 |
| 9,000+ | ₹2.79 | ₹25,110.00 |
10 × ₹5.44
₹54.40
excl. GST
₹64.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G126T353(XBLW)
₹54.40 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+105℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 6ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
74LVC1G126 is a single buffer/line driver with 3-state output. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power down applications using I OFF. The I OFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.
Applications
- SSDs: Internal or External
- Power Line Communication Modems
- Motor Controls: High-Voltage
- High-Speed Data Acquisition and Generation
- Cable Modem Termination Systems
- Video Communication Systems
- Video Broadcasting: IP-Based Multi-Format Transcoders
- Video Broadcasting and Infrastructure: Scalable Platforms
Key features
- ±24 mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Direct interface with TTL levels
- Latch-up performance exceeds 250 mA
- Overvoltage tolerant inputs to 5.5V
- Wide supply voltage range from 1.65V to 5.5V
- Specked from -40℃ to +105℃
- Packaging information: SOT-23-5/SOT-353
