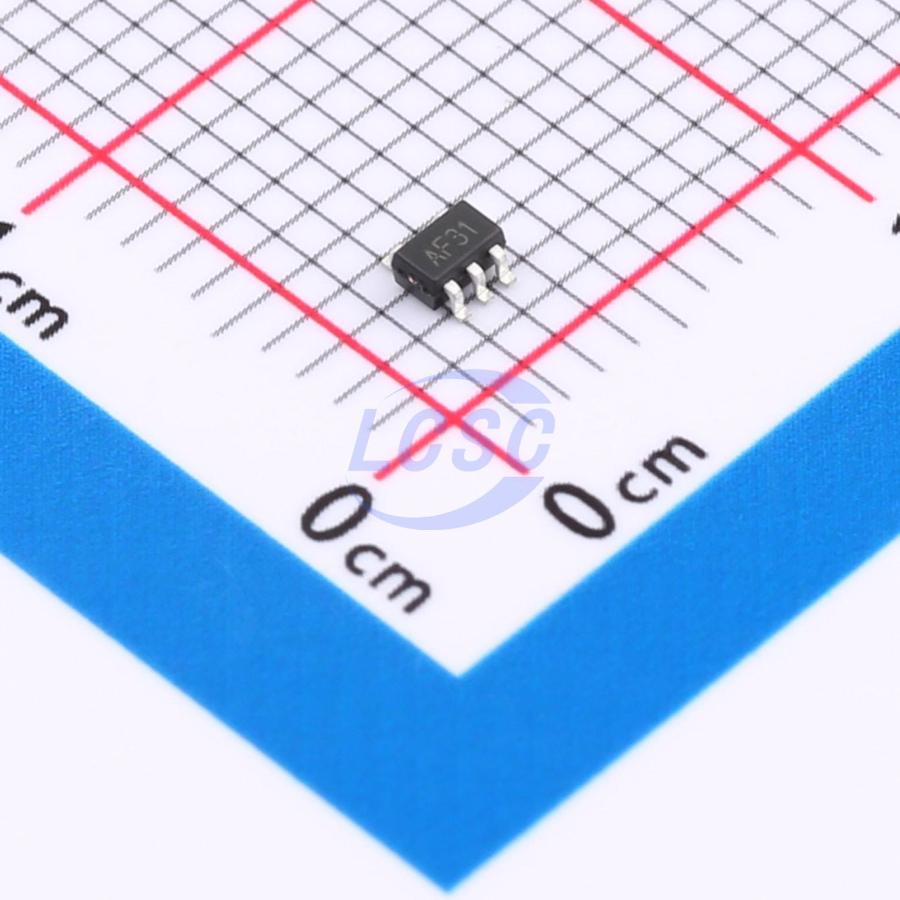

SN74LVC1G17T353(XBLW)
Schmitt trigger 1.65V~5.5V 1 1 7ns@5.5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS CompliantActive
Single Schmitt Trigger Buffer
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LVC1G17T353(XBLW)
- Store part #
- C41408438
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,620 in stock
#C41408438
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.16 | ₹51.60 |
| 100+ | ₹4.02 | ₹402.00 |
| 300+ | ₹3.45 | ₹1,035.00 |
| 3,000+ | ₹3.03 | ₹9,090.00 |
| 6,000+ | ₹2.69 | ₹16,140.00 |
| 9,000+ | ₹2.51 | ₹22,590.00 |
10 × ₹5.16
₹51.60
excl. GST
₹60.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G17T353(XBLW)
₹51.60 for 10 + GST
Specifications
- Function
- Level shifting
- Current - Output High(IOH)
- 24mA
- Input type
- Schmitt trigger
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 7ns@5.5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The SN74LVCiG17 provides a buffer function with Schmitt trigger input. It is capable of transforming slowly changing input signals into sharply defined outputs. The input can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5.5V environment.
Applications
- Wireless Headset, Keyboard, and Mouse
- Video Analytics: Server
- AV Receiver
- Audio Dock: Portable
- TV: LCD/Digital and High-Definition (HDTV)
- Tablet
- Enterprise Solid State Drive (SSD)
- Client and Enterprise Power
- Telecom/Server AC/DC Supply
- Single Controller
- Analog and Digital
- Personal Digital Assistant (PDA)
- MP3 Player/Recorder
- Blu-ray Player and Home Theater
Key features
- Wide supply voltage range from 1.65V to 5.5V
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Direct interface with TTL levels
- Unlimited rise and fall times
- Input accepts voltages up to 5V
- Specified from -40℃ to +125℃
- Packaging information: SOT-23-5/SOT-353
