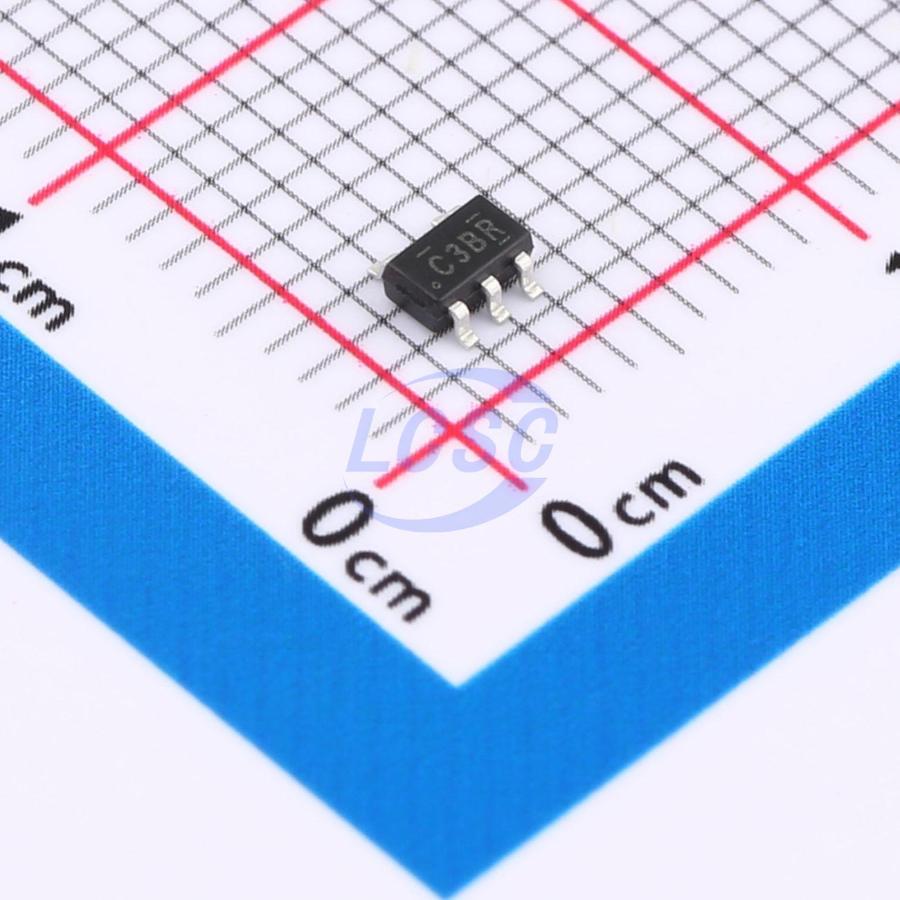

SN74LVC1G132DBVR-TP
10uA 1.65V~5.5V 5ns@5V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE 2-INPUT NAND GATE WITH SCHMITT-TRIGGER INPUTS
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G132DBVR-TP
- Store part #
- C46472758
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,110 in stock
#C46472758
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.41 | ₹52.05 |
| 50+ | ₹8.15 | ₹407.50 |
| 150+ | ₹7.03 | ₹1,054.50 |
| 500+ | ₹6.18 | ₹3,090.00 |
| 3,000+ | ₹5.50 | ₹16,500.00 |
| 6,000+ | ₹5.17 | ₹31,020.00 |
5 × ₹10.41
₹52.05
excl. GST
₹61.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G132DBVR-TP
₹52.05 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 5ns@5V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
The S N 74LVC1G132 contains 0ne 2-input NAND gate with Schmitt-trigger inputs designed for 1.65-V to 5.5V VCC operation and performs the Boolean function Y = A·B Or Y = A + B in positive logic. Because of Schmitt action, this device has different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. This device can be triggered from the slowest of input ramps and still give clean jitter-free output signals.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single
- Controller: Analog and Digital
- Solid State Drive (SSD): Client and Enterprise
- Wireless Headset, Keyboard, and Mouse
Key features
- Operate from 1.65V to 5.5V
- Inputs accept voltages to 5.5V
- ±24 mA output drive at 3.3V
- Low power consumption, ICC = 10 μA (Max)
- ESD Protection Exceeds JESD 22 - 2000 - V Human - Body Model (A114 - A) - 1000 - V Charged - Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G132S5#C46472793TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,440 | ₹9.38 · 3,440 in stock | View |
 | SN74LVC1G00DBVR#C19829657TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 6,340 | ₹5.81 · 6,340 in stock | View |
 | 74LVC1G00GV#C19829588TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,680 | ₹6.11 · 2,680 in stock | View |
 | 74LVC1G00W5-TP#C52098152TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,890 | ₹5.85 · 2,890 in stock | View |
 | NC7SZ00M5X#C19829499TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,140 | ₹7.03 · 1,140 in stock | View |
