TDSEMICDatasheet (PDF)

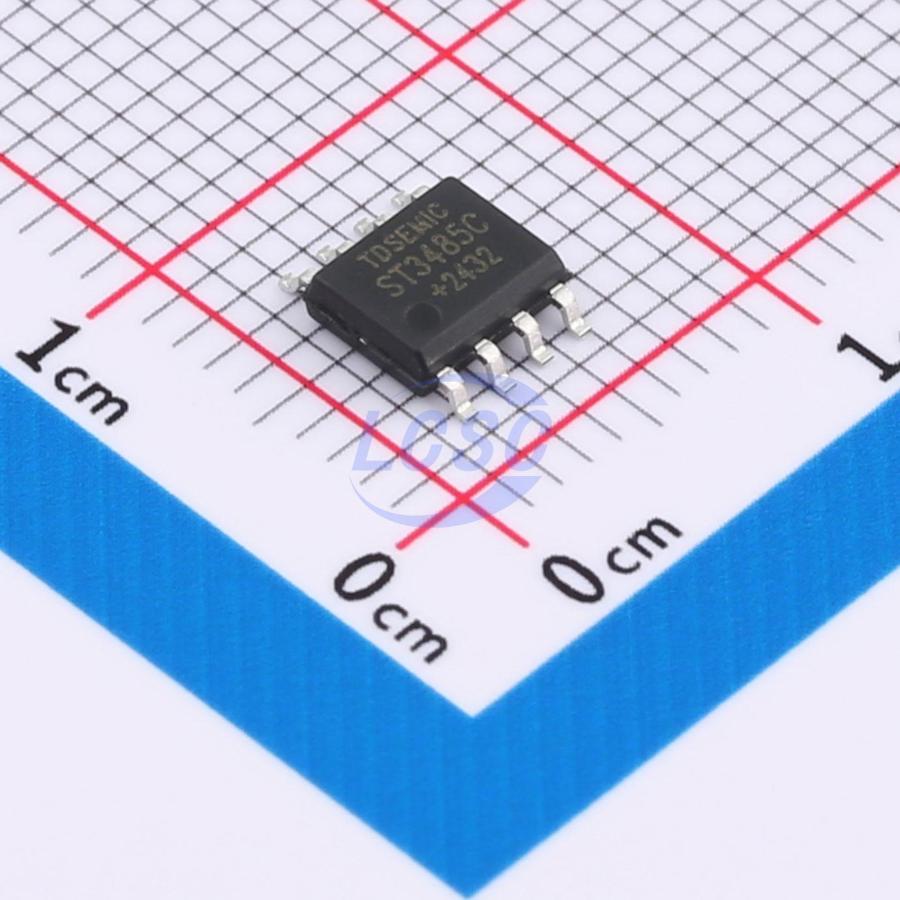

ST3485CDR-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
IC TRANSCEIVER HALF 1/1 SOP-8
- Manufacturer
- TDSEMIC
- Manufacturer part #
- ST3485CDR-TD
- Store part #
- C41369853
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C41369853
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.10 | ₹175.50 |
| 50+ | ₹27.57 | ₹1,378.50 |
| 150+ | ₹24.33 | ₹3,649.50 |
| 500+ | ₹20.31 | ₹10,155.00 |
| 2,500+ | ₹18.51 | ₹46,275.00 |
| 5,000+ | ₹17.44 | ₹87,200.00 |
5 × ₹35.10
₹175.50
excl. GST
₹207.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST3485CDR-TD
₹175.50 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V
- Type
- Transceiver
- Data Rate
- 12Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection
- Number of Receivers
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.151 g
Overview
ST3485CDR is a transceiver IC for RS485 and RS422 communication systems, supporting data transmission and reception at rates up to 10Mbps. It operates in half-duplex mode with Driver Enable (DE) and Receiver Enable (/RE) control pins. The receiver features 1/8 unit load input impedance, allowing up to 128 loads on the bus. Three-state output, half-duplex communication, A/B terminal short-circuit protection, SOP8 package
Applications
- Low-power RS485 & RS422 receiver
- Electric, water, and gas meters
- Level translation
- Access control and security systems
Key features
- Data transmission rate up to 10Mbps for transmit and receive
- Half-duplex communication with Driver Enable (DE) and Receiver Enable /RE control pins
- Receiver designed with 1/8 unit load input impedance, supporting up to 128 loads on the bus
- ESD: 1K (add protection components if hot-swapping is required)
- Tri-state output half-duplex communication
- A/B terminal short-circuit protection
- SOP8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3485CSA-TD#C41369776TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,270 | ₹41.30 · 2,270 in stock | View |
 | MAX3485ESA-TD#C41369779TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 6,070 | ₹40.33 · 6,070 in stock | View |
 | SP3485EN-TD#C41369798TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 5,865 | ₹31.53 · 5,865 in stock | View |
 | ST3485BDR-TD#C41369852TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 1,000 | ₹47.13 · 1,000 in stock | View |
 | ST3485EBDR-TD#C41369854TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,500 | ₹46.97 · 2,500 in stock | View |
