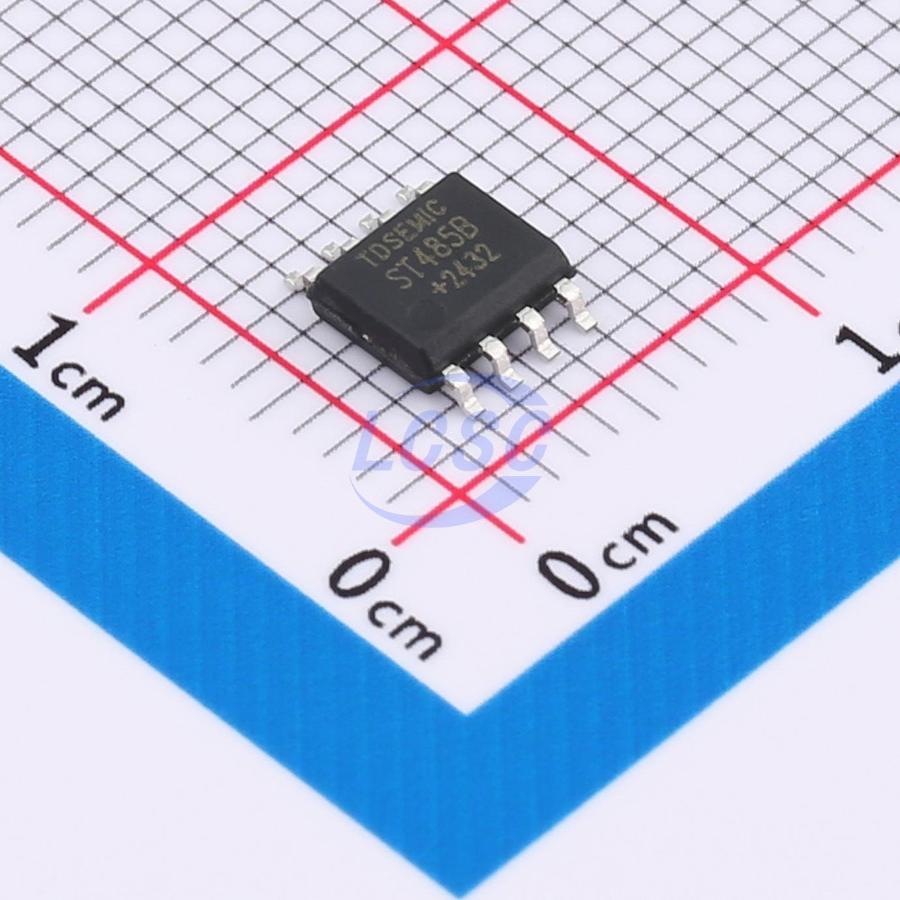

ST485BDR-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
ST485BDR
- Manufacturer
- TDSEMIC
- Manufacturer part #
- ST485BDR-TD
- Store part #
- C41369856
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C41369856
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.32 | ₹86.60 |
| 50+ | ₹13.76 | ₹688.00 |
| 150+ | ₹11.99 | ₹1,798.50 |
| 500+ | ₹10.65 | ₹5,325.00 |
| 2,500+ | ₹9.58 | ₹23,950.00 |
| 5,000+ | ₹9.05 | ₹45,250.00 |
5 × ₹17.32
₹86.60
excl. GST
₹102.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST485BDR-TD
₹86.60 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V~5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±1.5kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 1.6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.153 g
Overview
ST485BDR is a transceiver IC for RS-485 and RS-422 communication systems. The IMN485 supports data transmission rates up to 2.5Mbps for both transmit and receive. The 485 operates in half-duplex mode. In addition, the 485 features Driver Enable (DE) and Receiver Enable (RE) pins; when disabled, both driver and receiver outputs enter a high-impedance state. The ST485BDR provides fail-safe protection. In receive mode, the receiver output is driven high when the input is open-circuited or short-circuited.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level translation
- EMI-resistant transceiver
- Industrial control LAN
Key features
- ESD protection: ±1500V - Human Body Model (HBM)
- Three-state output half-duplex bus supports up to 128 transceivers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX487ECSA-TD#C41369785TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,385 | ₹45.33 · 2,385 in stock | View |
 | SN65176DR-TD#C41369790TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,365 | ₹18.31 · 2,365 in stock | View |
 | SN75176DR-TD#C41369794TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 1,155 | ₹16.59 · 1,155 in stock | View |
 | SP485ECN-TD#C41369799TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,925 | ₹22.01 · 2,925 in stock | View |
 | ST485CDR-TD#C41369857TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 4,140 | ₹23.42 · 4,140 in stock | View |
