TOSHIBADatasheet (PDF)

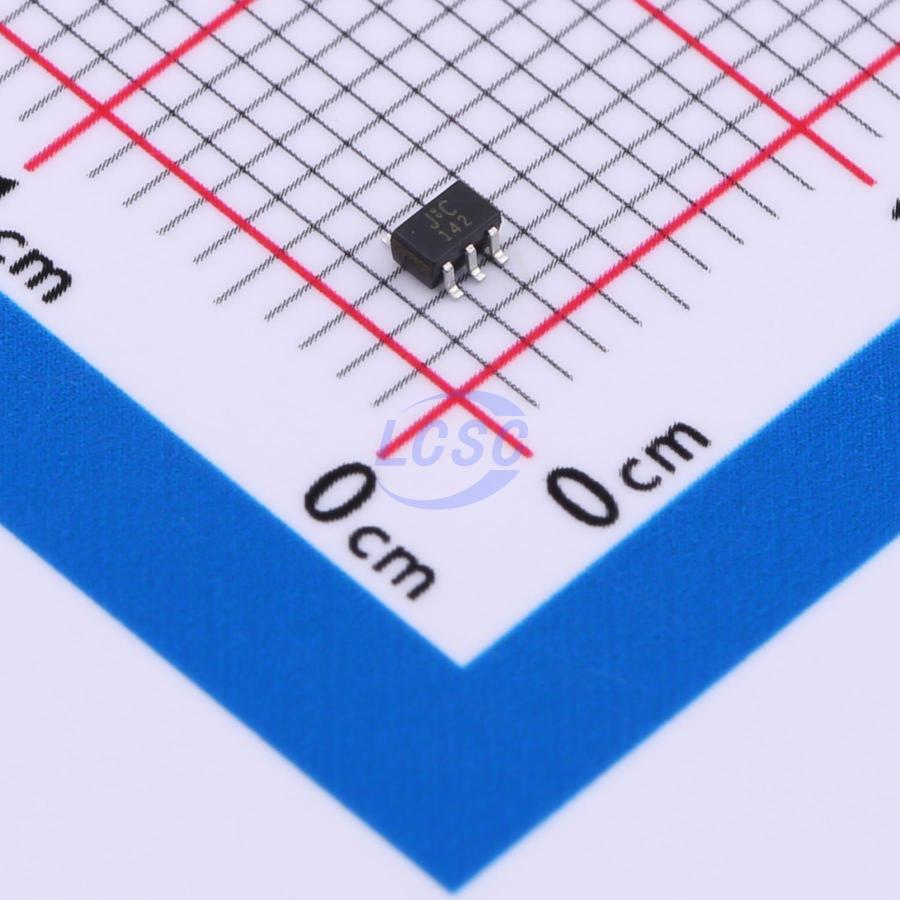

TC7SZ126FU,LJ(CT
1.65V~5.5V 1 1 2.6ns@5V,50pF SSOP-5-1.25mm Buffers, Drivers, Receivers, Transceivers RoHS
SSOP-5-1.25mmROHS3 CompliantActive
CMOS Digital Integrated Circuits
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ126FU,LJ(CT
- Store part #
- C2652128
- Package / case
- SSOP-5-1.25mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,140 in stock
#C2652128
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.05 | ₹100.50 |
| 100+ | ₹7.98 | ₹798.00 |
| 300+ | ₹6.93 | ₹2,079.00 |
| 3,000+ | ₹6.15 | ₹18,450.00 |
| 6,000+ | ₹5.53 | ₹33,180.00 |
| 9,000+ | ₹5.23 | ₹47,070.00 |
10 × ₹10.05
₹100.50
excl. GST
₹118.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SZ126FU,LJ(CT
₹100.50 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 20uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 24mA
- Series
- TC7SZ
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.6ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
Bus Buffer with 3- State Output
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topd = -40 to 125°C
- High output current: ±24 mA (min) at VCC = 3.0 V
- Super high speed operation: tpd = 2.6 ns (typ.) at VCC = 5.0 V, CL = 50 pF
- Operation voltage range: VCC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V VCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G125GW#C52140430MDD(Microdiode Semiconductor) · SOT-353 | MDD(Microdiode Semiconductor) | SOT-353 | 7,578 | ₹12.65 · 7,578 in stock | View |
 | 74LVC1G125GW-Q100,#C548256Nexperia · TSSOP-5-1.3mm | Nexperia | TSSOP-5-1.3mm | 1,315 | ₹39.37 · 1,315 in stock | View |
 | RS1G126XC5#C5372446RUNIC · SC70-5 | RUNIC | SC70-5 | 2,540 | ₹14.42 · 2,540 in stock | View |
 | SN74LVC1G126DCKR(AT)#C54973443AOTE · SC-70-5 | AOTE | SC-70-5 | 8,840 | ₹4.19 · 8,840 in stock | View |
 | SN74LVC1G125DCKR(UMW)#C7394030UMW · SC-70-5 | UMW | SC-70-5 | 13,170 | ₹5.91 · 13,170 in stock | View |
