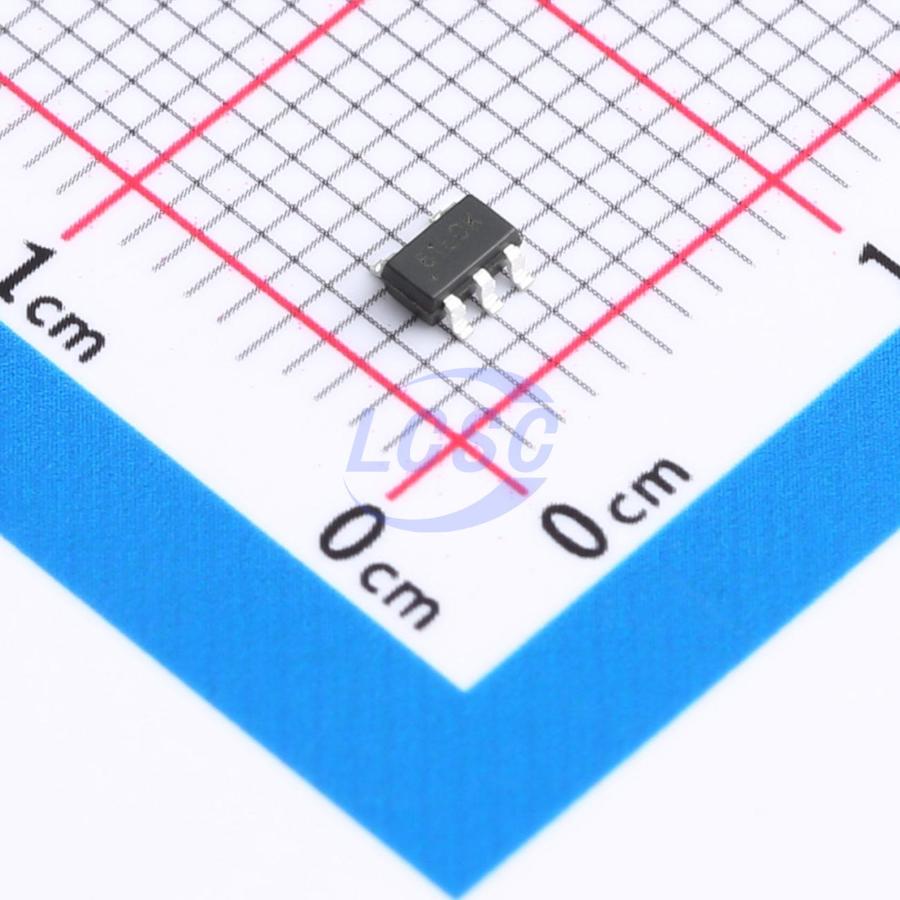

TP1561AL1-TR

The TP156xAL1 series of products are CMOS dual and quad RRIO op-amps with low offset, low power and stable high-frequency response. They incorporate proprietary and patented design techniques to achieve very good AC performance with 6-MHz bandwidth, 4.5-V/μs slew rate, and low distortion while drawing only 600 μA of quiescent current per amplifier. The input common-mode voltage range extends 300 mV beyond V- and V+ , and the outputs swing rail-to-rail. The TP156xAL1 family can be used as plug-in replacements for many commercially available op-amps to reduce power consumption and improve input/output range and performance. The combination of features makes the TP156xAL1 ideal choice for motor control and automotive applications. The ability to swing rail-to-rail at the inputs and outputs enables designers to buffer CMOS DACs, ASICs, or other wide output swing devices in single-supply systems.

Applications

• Automotive Motor Control
• On-Board Charger

Key features

• Supply Voltage: 2.5 V to 6 V
• Low Supply Current: Typical 600-μA per Channel
• Rail-to-Rail Input and Output
• Bandwidth: Typical 6 MHz
• Slew Rate: Typical 4.5 V/μs
• Excellent EMI Suppress Performance
• Offset Voltage: Maximum ±3 mV
• Offset Voltage Temperature Drift: Typical 1 μV/°C
• Low Noise: Typical 19 nV/√Hz at 1 kHz
• High Output Capability: Typical 100 mA
• -40°C to 125°C Operation Temperature Range
• Qualified for Automotive Applications with AEC-Q100 Reliability Test
