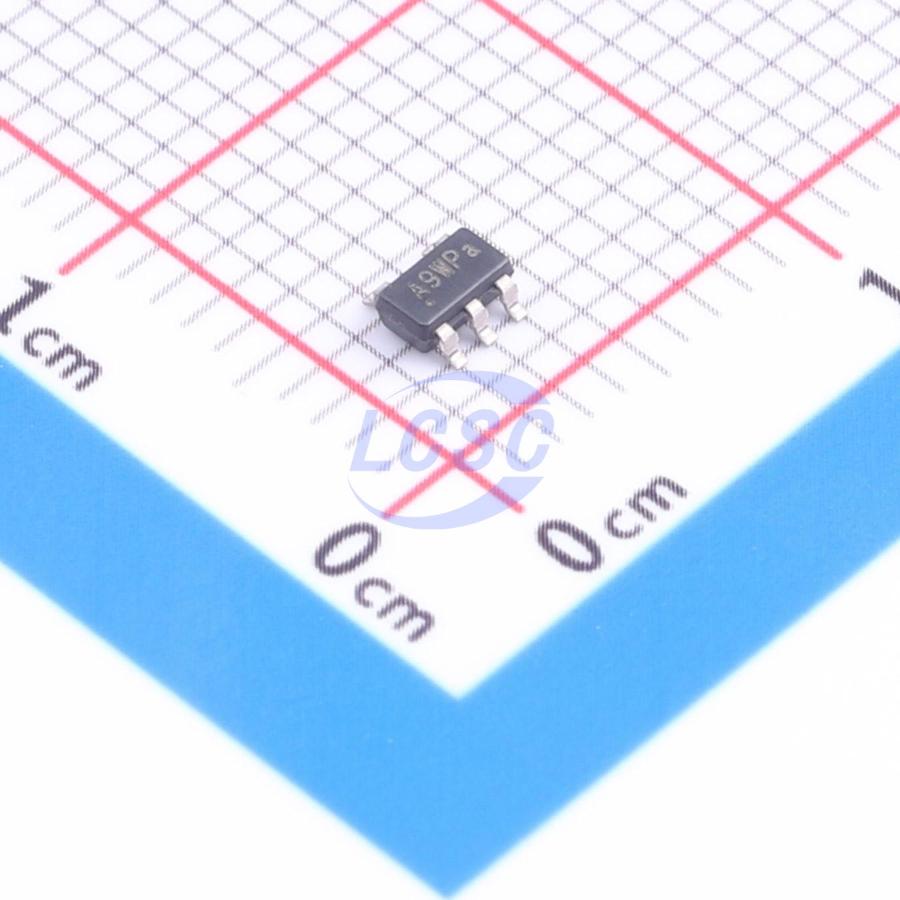

TPA6581Q-S5TR-S
10pA 1.2mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Audio Amplifiers
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPA6581Q-S5TR-S
- Store part #
- C53971306
- Package / case
- SOT-23-5
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,620 in stock
#C53971306
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.21 | ₹221.05 |
| 50+ | ₹34.93 | ₹1,746.50 |
| 150+ | ₹30.94 | ₹4,641.00 |
| 500+ | ₹25.98 | ₹12,990.00 |
| 3,000+ | ₹23.77 | ₹71,310.00 |
| 6,000+ | ₹22.45 | ₹1,34,700.00 |
5 × ₹44.21
₹221.05
excl. GST
₹260.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPA6581Q-S5TR-S
₹221.05 for 5 + GST
Specifications
- number of channels
- 1
- Ib - Input Bias Current
- 10pA
- Operating Temperature
- -40℃~+125℃
- Input Offset Current(Ios)
- 10pA
- Vos - Input Offset Voltage
- 300uV
- Output Current
- 60mA
- Common Mode Rejection Ratio (CMRR)
- 90dB
- Quiescent Current
- 1.2mA
- Gain Bandwidth Product
- 10MHz
- Input Offset Voltage Drift(Vos TC)
- 100nV/℃
- Single Supply
- 2.7V~5.5V
- Slew Rate
- 8V/us
- Noise density(eN)
- 10nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPA6581-S5TR#C54649573PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 3,000 | ₹40.33 · 3,000 in stock | View |
 | TPA6581U-S5TR#C390869943PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 2,220 | ₹40.21 · 2,220 in stock | View |
 | TPH2501-TR#C1267133PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 12,165 | ₹57.03 · 12,165 in stock | View |
 | TPA1881-TR#C29305353PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 2,840 | ₹346.04 · 2,840 in stock | View |
 | TP2411-TR#C29023523PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 1,935 | ₹54.10 · 1,935 in stock | View |
