3PEAKDatasheet (PDF)

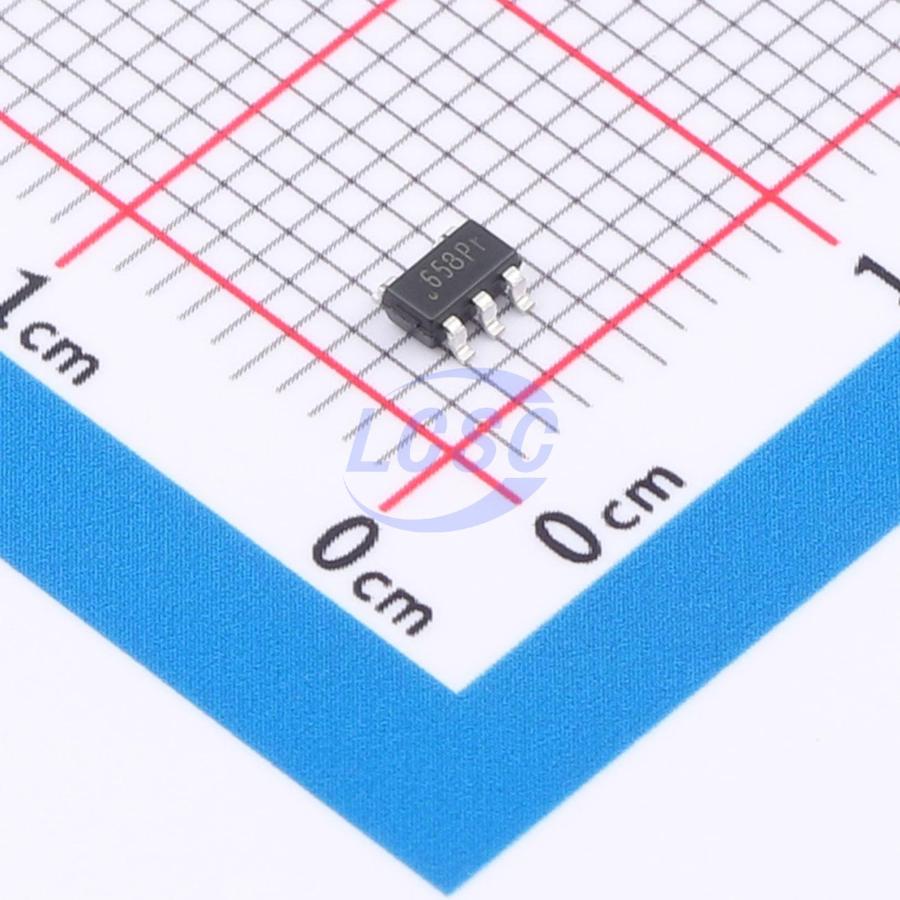

TPA6581-S5TR
135mA 1 300uV 8V/us 90dB 10pA 10MHz 1.2mA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPA6581-S5TR
- Store part #
- C5464957
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C5464957
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.33 | ₹201.65 |
| 50+ | ₹31.01 | ₹1,550.50 |
| 150+ | ₹27.02 | ₹4,053.00 |
| 500+ | ₹22.04 | ₹11,020.00 |
| 2,500+ | ₹19.82 | ₹49,550.00 |
| 5,000+ | ₹18.50 | ₹92,500.00 |
5 × ₹40.33
₹201.65
excl. GST
₹237.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPA6581-S5TR
₹201.65 for 5 + GST
Specifications
- Output Current
- 135mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 300uV
- Slew Rate
- 8V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 100nV/℃
- Gain Bandwidth Product
- 10MHz
- Quiescent Current
- 1.2mA
- Features
- Built-in compensation;ESD protection
- Input Voltage Noise Density
- 10nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The TPA658x series is a family of single, dual, and quad-channel rail-to-rail input/output op-amps fabricated in CMOS process, featuring low offset voltage, low power consumption, and stable high-frequency response. The series employs proprietary design techniques to achieve high-performance AC characteristics, including 10 MHz bandwidth, 8 V/μs slew rate, and low distortion, while consuming only 1.2 mA quiescent current per amplifier. Even with signals present on the input pins, the series provides isolation during power-down, as there are no ESD diodes between the input pins and the positive supply pin.
Applications
- Instrumentation
- Audio equipment
- Motor control
- Industrial control
Key features
- Supply voltage: 2.7 V ~ 5.5 V
- Offset voltage: ±1.5 mV (maximum)
- Unity-gain bandwidth: 10 MHz
- Slew rate: 8 V/μs
- Low power consumption: 1.2 mA per channel
- Rail-to-rail input and output
- Low 1/f noise: 10 nV/√Hz at 1 kHz
- No significant output glitch during power-on and power-off
- Operating temperature range: -40 °C ~ 125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPA6581U-S5TR#C390869943PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 2,220 | ₹40.21 · 2,220 in stock | View |
 | TPA6581Q-S5TR-S#C539713063PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 1,620 | ₹44.21 · 1,620 in stock | View |
 | TPH2501-TR#C1267133PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 12,165 | ₹57.03 · 12,165 in stock | View |
 | TP2411-TR#C29023523PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 1,935 | ₹54.10 · 1,935 in stock | View |
 | TPA1881-TR#C29305353PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 2,840 | ₹346.04 · 2,840 in stock | View |
