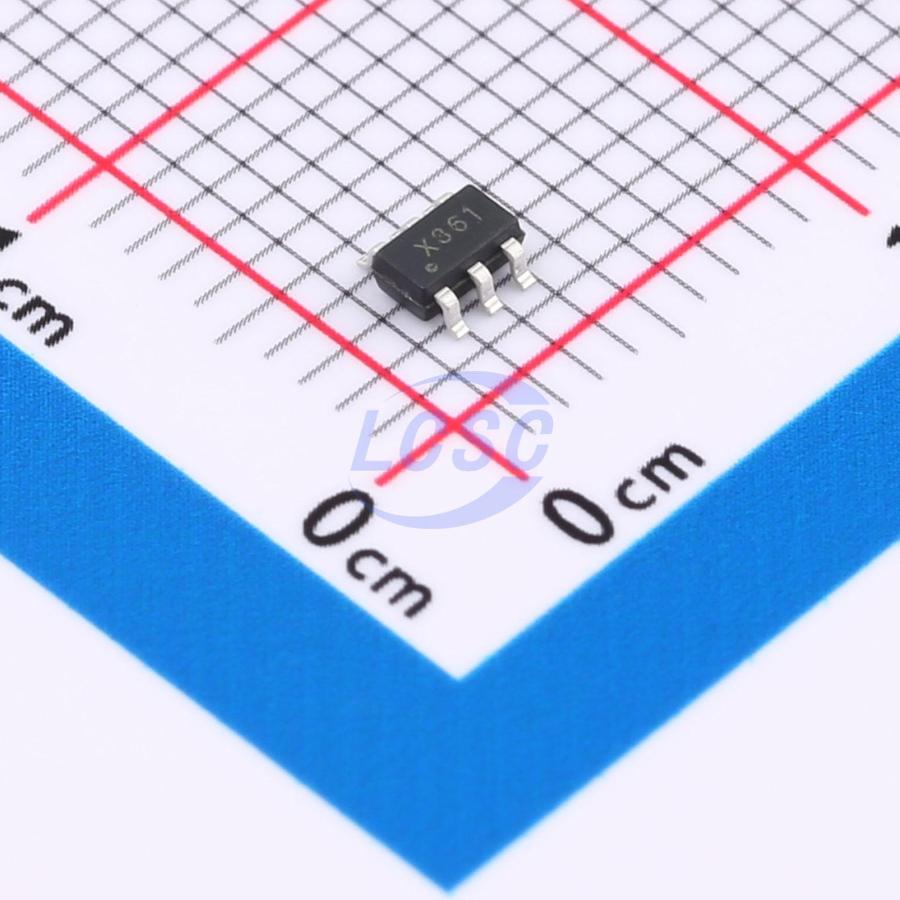

XC2361
12 Bit Analog to Digital Converter 1 Input SAR SOT-23-6
SOT-23-6RoHSActive
250 ksps, 3.3 V - 5.25 V, ultra-low power consumption, 12-bit SAR analog-to-digital converter
- Manufacturer
- SiChange
- Manufacturer part #
- XC2361
- Store part #
- C23377958
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
997 in stock
#C23377958
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹201.64 | ₹201.64 |
| 10+ | ₹166.74 | ₹1,667.40 |
| 30+ | ₹147.66 | ₹4,429.80 |
| 100+ | ₹125.98 | ₹12,598.00 |
| 500+ | ₹116.23 | ₹58,115.00 |
| 1,000+ | ₹111.89 | ₹1,11,890.00 |
1 × ₹201.64
₹201.64
excl. GST
₹237.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC2361
₹201.64 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 350uA
- Voltage - Supply
- 3.3V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 0.5LSB
- Clock/Oscillator
- External
- Features
- Power-on reset
- Resolution(Bits)
- 12;250kHz
- S/N Ratio
- 72.2dB
- DNL (LSB)
- 0.5LSB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The XC2361 is a 12- bit, high speed, low power, and small- sized Successive- Approximation- Register (SAR) ADC. The supply current drops at lower sampling rates because the device automatically power down after conversion. The full- scale input of the XC2361 is 0V to VDD or VREF. This device can operate from a single 3.3 V to 5.25 V supply with a 250 KSPS throughput. The XC2361 is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃ The XC2361 is a drop- in replacement for the LTC2361 and consumes only one third dynamic power of their counterpart.
Applications
- Communication Systems
- Data Acquisition Systems
- Handheld Portable Devices
- Uninterrupted Power Supplies
- Battery- Operated Systems
- Automotive
Key features
- 12- Bit Resolution
- Low Power (XC2361 typical): 1.15mW (3.3V, 250 KSPS), 1.65mW (4.0V, 250 KSPS)
- Single 3.3 V to 5.25 V Supply Operation for XC2361
- Fast Throughput Rate: 250 KSPS for XC2361
- ±0.5 LSB INL, ±0.5 LSB DNL
- No Data Latency
- SPI/MICROWIRE Compatible Serial Interface
- Guaranteed Operation from - 40°C to 85°C
- 6- Pin SOT- 23 Package
- Second- Source for LTC2361
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC7920#C23377965SiChange · SOT-23-6 | SiChange | SOT-23-6 | 1,001 | ₹382.25 · 1,001 in stock | View |
 | XC2362#C23377959SiChange · SOT-23-6 | SiChange | SOT-23-6 | 1,007 | ₹246.79 · 1,007 in stock | View |
 | XC2365E#C41383385SiChange · SOT-23-6 | SiChange | SOT-23-6 | 946 | ₹259.53 · 946 in stock | View |
 | XC11665#C23377963SiChange · SOT-23-6 | SiChange | SOT-23-6 | 4,100 | ₹264.35 · 4,100 in stock | View |
 | XC2362A#C41383384SiChange · SOT-23-6 | SiChange | SOT-23-6 | 877 | ₹218.56 · 877 in stock | View |
