SiChangeDatasheet (PDF)

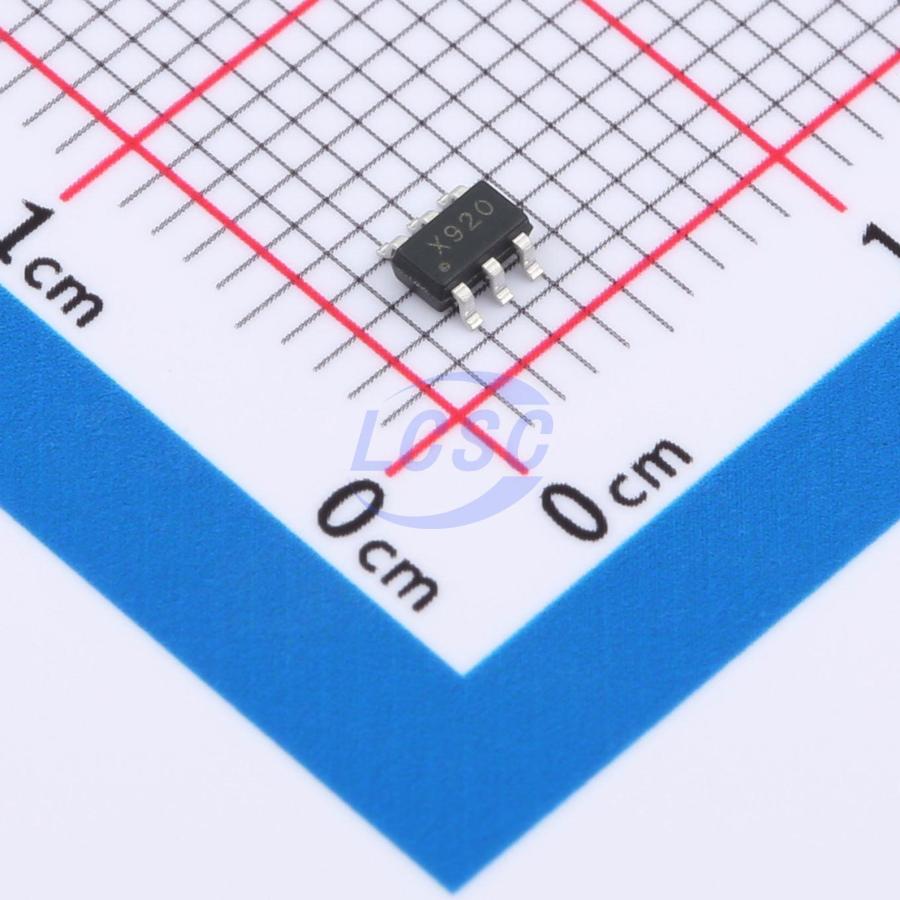

XC7920
SPI 3.3V~5.25V SOT-23-6 Analog to Digital Converters (ADC)
SOT-23-6RoHSActive
250KSPS, 3.3V - 5.25V, 12 - BIT SAR ANALOG - TO - DIGITAL CONVERTER
- Manufacturer
- SiChange
- Manufacturer part #
- XC7920
- Store part #
- C23377965
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,001 in stock
#C23377965
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹382.25 | ₹382.25 |
| 10+ | ₹323.50 | ₹3,235.00 |
| 30+ | ₹286.64 | ₹8,599.20 |
| 100+ | ₹248.91 | ₹24,891.00 |
| 500+ | ₹232.00 | ₹1,16,000.00 |
| 1,000+ | ₹224.63 | ₹2,24,630.00 |
1 × ₹382.25
₹382.25
excl. GST
₹451.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC7920
₹382.25 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Voltage - Supply
- 3.3V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 0.5LSB
- Clock/Oscillator
- External
- Clock Frequency
- 5MHz
- Resolution(Bits)
- 12;250kHz
- S/N Ratio
- 72dB
- DNL (LSB)
- 0.5LSB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The XC7920 is a 12-bit, high speed, low power, and small-sized Successive-Approximation-Register (SAR) ADC. The part operates from a single 3.3 V to 5.25 V power supply and features throughput rates up to 250 KSPS. The XC7920 is available in a 6-pin SOT-23 package and has an operating temperature range of -40℃ to 85℃ The XC7920 is a drop-in replacement for the AD7920 and consumes only one third dynamic power of their counterpart.
Applications
- Battery Powered Systems
- Personal digital assistants
- Medical instruments
- Mobile communications
- Instrumentation and Control Systems
- Data Acquisition Systems
- High Speed Modems
- Optical Sensors
Key features
- Specified for VDD of 3.3 V to 5.25 V
- Fast Throughput Rate: 250 KSPS
- ±0.5 LSB INL, ±0.5 LSB DNL
- 12 bit resolution
- No Pipeline Delays
- SPI/DSP/MICROWIRE/QSPIM Compatible Serial Interface
- Variable Power Management
- Low Power (typical) 1.10 mW (3.3 V, 250 KSPS), 2.80 mW (5.0 V, 250 KSPS)
- Second-Source for AD7920
- 6-Pin SOT-23 Package (Stock)
- 6-Pin SC-70 and 8-Pin MSOP Packages (Planned)
