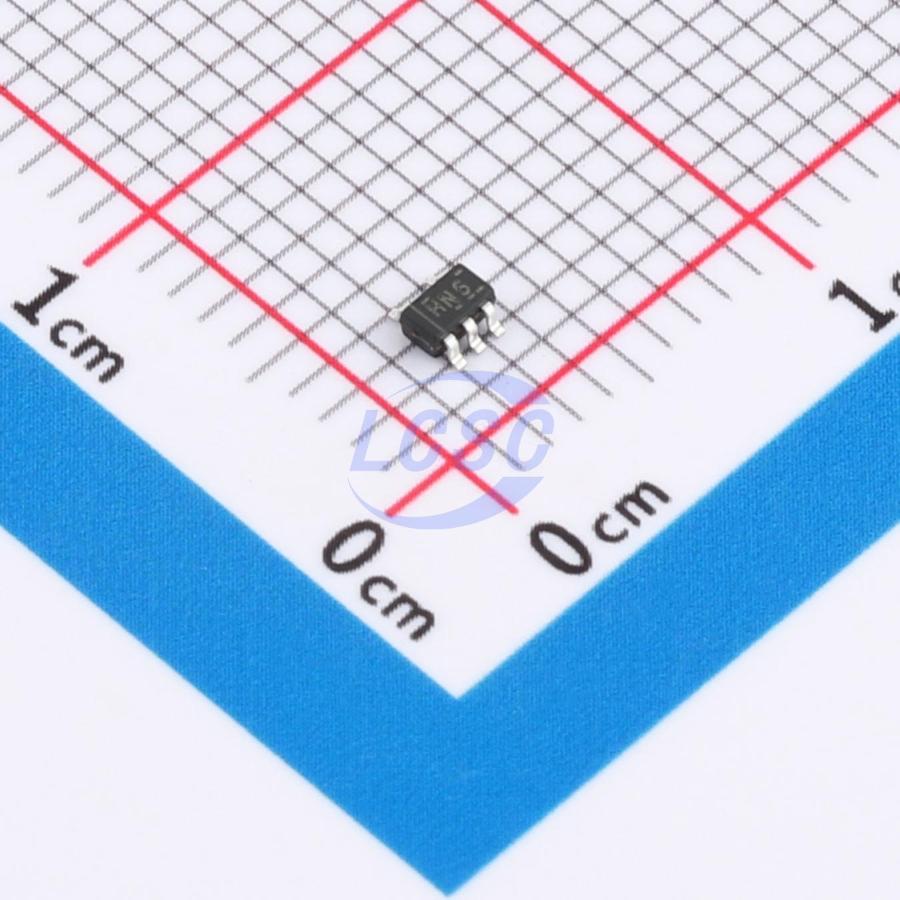

NC7SP126P5X-TP
0.8V~3.6V 1 1 2.8ns@3.3V,10pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SP126P5X-TP
- Store part #
- C52098162
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C52098162
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.38 | ₹63.80 |
| 100+ | ₹5.01 | ₹501.00 |
| 300+ | ₹4.34 | ₹1,302.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.41 | ₹20,460.00 |
| 9,000+ | ₹3.21 | ₹28,890.00 |
10 × ₹6.38
₹63.80
excl. GST
₹75.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SP126P5X-TP
₹63.80 for 10 + GST
Specifications
- Voltage - Supply
- 0.8V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 500nA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 4mA
- Current - Output Low(IOL)
- 4mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.8ns@3.3V,10pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
NC7SP126P5X-TP is a single bus buffer/line driver with 3-state output. When the output enable (OE) is high, the output is disabled. Conversely, when OE is low, true data is passed from input A to output Y.
Applications
- AV receivers
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- Wireless headphones, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V ~ 3.6V
- Inputs tolerate up to 3.6V
- I_OFF supports partial power-down mode
- Low quiescent current: I_CC = 0.5μA (Max.)
- ESD protection exceeds JESD 22
- Human Body Model: 2000V (A114-A)
- Machine Model: 200V (A115-A)
- Charged Device Model: 1000V (C101)
