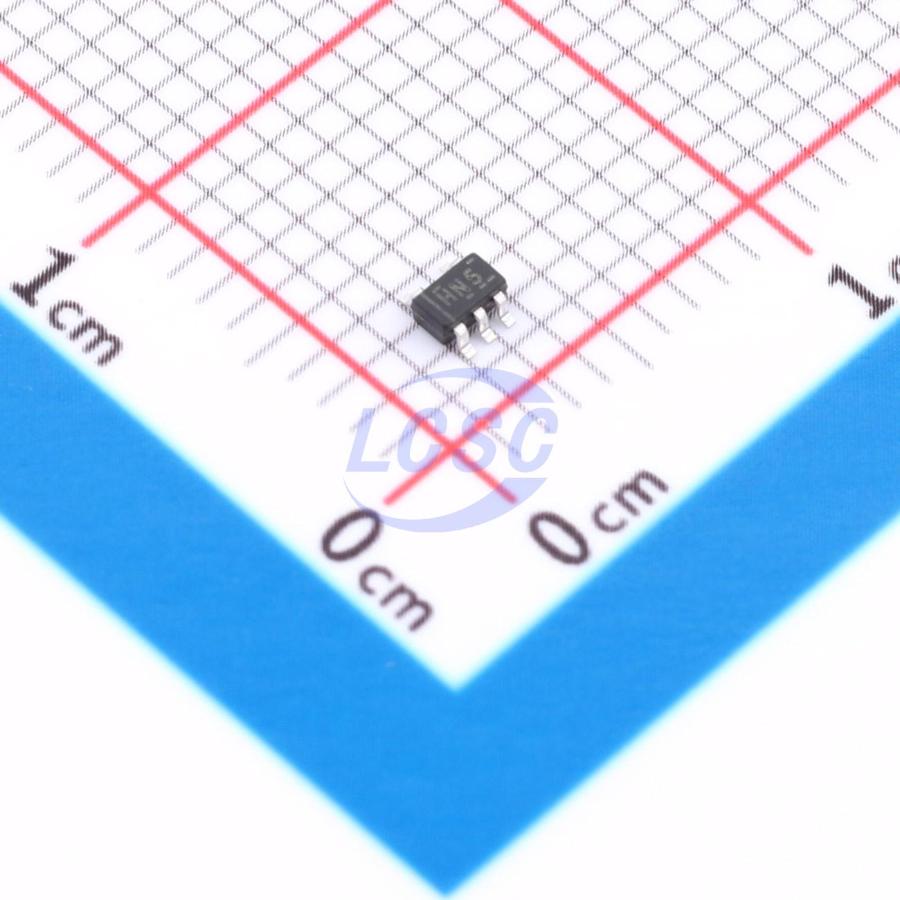

74AUP1G126GW-TP
0.8V~3.6V 1 1 2.4ns@3.3V,5pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP1G126GW-TP
- Store part #
- C51886129
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C51886129
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.02 | ₹60.20 |
| 100+ | ₹4.72 | ₹472.00 |
| 300+ | ₹4.07 | ₹1,221.00 |
| 3,000+ | ₹3.59 | ₹10,770.00 |
| 6,000+ | ₹3.20 | ₹19,200.00 |
| 9,000+ | ₹3.00 | ₹27,000.00 |
10 × ₹6.02
₹60.20
excl. GST
₹71.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP1G126GW-TP
₹60.20 for 10 + GST
Specifications
- Voltage - Supply
- 0.8V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 500nA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 4mA
- Series
- 74AUP
- Current - Output Low(IOL)
- 4mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.4ns@3.3V,5pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
74AUP1G126GW-TP is a single bus buffer/line driver with tri-state output. When the output enable (OE) is high, the output is disabled. Conversely, when OE is low, the true data is propagated from the A input to the Y output.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
Key features
- Wide supply voltage range, 0.8V to 3.6V
- Inputs tolerant up to 3.6V
- IOFF supports partial power-down mode
- Low quiescent current; max Icc = 0.5μA
- ESD protection exceeds JESD 22 standard
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AUP1G125GW-TP#C49230941TECH PUBLIC · SOT353 | TECH PUBLIC | SOT353 | 2,160 | ₹9.80 · 2,160 in stock | View |
 | SN74AUP1G125DCKR-TP#C49230997TECH PUBLIC · SOT353 | TECH PUBLIC | SOT353 | 3,390 | ₹6.11 · 3,390 in stock | View |
 | SN74AUP1G240DCKR-TP#C51939605TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,820 | ₹7.44 · 2,820 in stock | View |
 | NC7SP126P5X-TP#C52098162TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,960 | ₹6.38 · 2,960 in stock | View |
 | 74AUP1G240GW-TP#C51939524TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹7.21 · 2,990 in stock | View |
