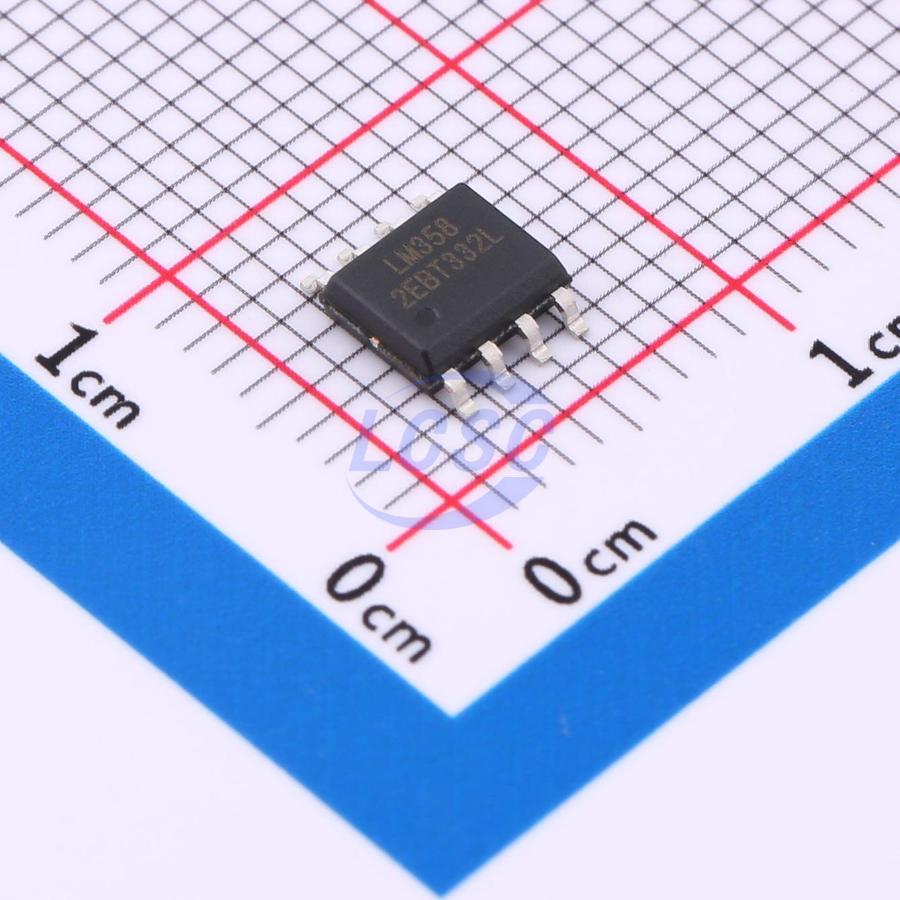

lingxingic

LM358DR(LX)

Standard (General Purpose) Amplifier 2 Circuit SOP-8

SOP-8RoHSActive

Dual-channel operational amplifier

Manufacturer: lingxingic
Manufacturer part #: LM358DR(LX)
Store part #: C24833647
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,420 in stock

#C24833647

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
20+	₹5.11	₹102.20
200+	₹4.01	₹802.00
600+	₹3.40	₹2,040.00
4,000+	₹2.83	₹11,320.00
8,000+	₹2.51	₹20,080.00
20,000+	₹2.34	₹46,800.00

Quantity (min 20, multiples of 20)

20 × ₹5.11

₹102.20

excl. GST

₹120.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LM358DR(LX)

₹102.20 for 20 + GST

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 300V/ms
Input Offset Current(Ios): 2nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 20nA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 500uA
Gain Bandwidth Product: 700kHz
Features: Built-in compensation
Input Voltage Noise Density: 40nV/√Hz@1kHz
Dual Supply: -9V~-1.5V;1.5V~9V
Single Supply: 3V~18V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.181 g

Overview

The LM358 contains two independent, high-gain, internally frequency-compensated dual operational amplifiers. It is suitable for single-supply operation and also works in dual-supply mode. Under recommended operating conditions, the supply current is independent of the supply voltage. Applications include transducer amplifiers, audio amplifiers, industrial control, DC gain blocks, and all conventional op-amp applications.

Applications

Sense amplifiers
Audio amplifiers
Industrial control
DC gain stages
All applications using general-purpose op-amps

Key features

Supply voltage range: single supply 3V - 18V, dual supply ±1.5V - ±9V
Low supply current, independent of supply voltage, typical 0.5mA
Unity-gain bandwidth: 0.7MHz
Internal frequency compensation
Input offset voltage: 3mV (typical)
Input offset current: 2nA (typical)
Input bias current: 20nA (typical)
Differential input voltage range (maximum rated supply voltage): 16V
Open-loop differential voltage gain: 95dB typical
Package: SOP8/DIP8/TSSOP8
