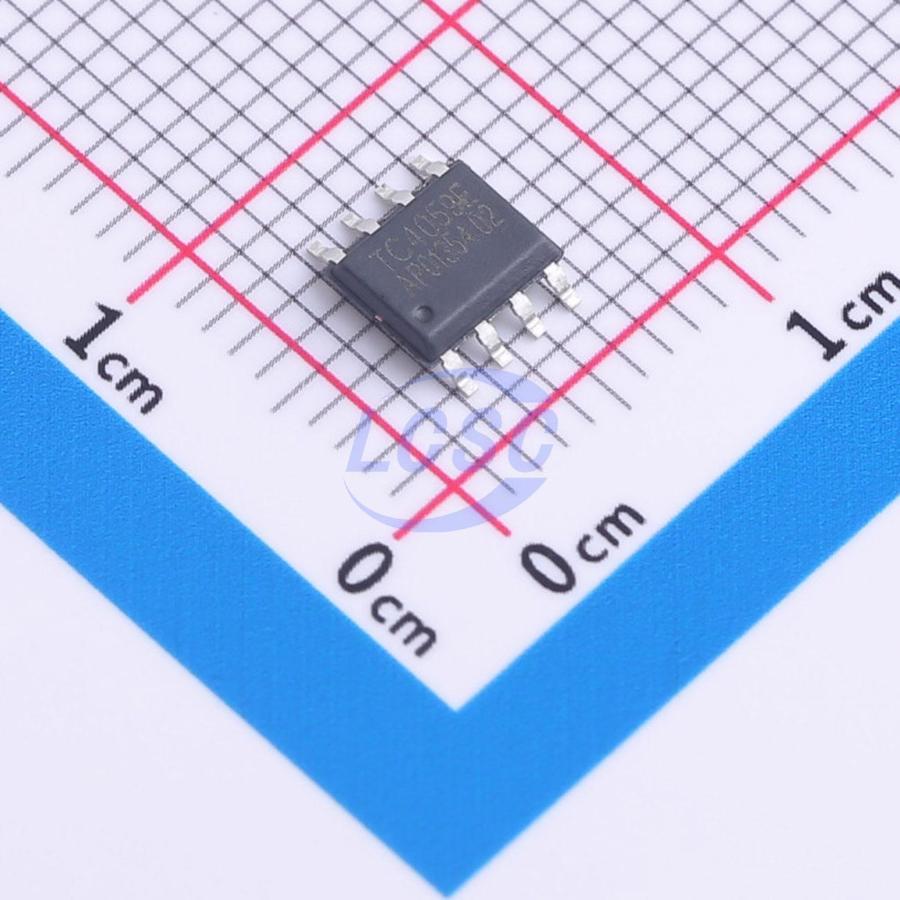

Linear Charging IC Lithium-ion/Polymer ESOP-8
TC4059 High-Voltage-Input Single-Cell Lithium-Ion Battery Linear Charger Control Chip
- Manufacturer
- FM
- Manufacturer part #
- TC4059
- Store part #
- C29781278
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,660 in stock
#C29781278
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.28 | ₹82.80 |
| 100+ | ₹6.52 | ₹652.00 |
| 300+ | ₹5.65 | ₹1,695.00 |
| 1,000+ | ₹4.99 | ₹4,990.00 |
| 4,000+ | ₹4.46 | ₹17,840.00 |
| 8,000+ | ₹4.19 | ₹33,520.00 |
10 × ₹8.28
₹82.80
excl. GST
₹97.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC4059
₹82.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 22uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6V
- Features
- Trickle charging;Constant current charging;Constant voltage charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.174 g
Overview
TC4059 is a high-voltage input, single-cell lithium-ion battery linear charger controller IC with OVP. The VCC pin supports up to 36V input with built-in OVP: when the input voltage exceeds 7V (typical) during charging, the OVP function activates and halts charging, effectively protecting the IC from damage caused by excessive input voltage or high-voltage spikes at the moment a charger is connected. TC4059 automatically adjusts the charging current to limit die temperature. The termination voltage is fixed at 4.2V, and the charging current is programmable via an external resistor, with a maximum charging current of 1A. When the float voltage is reached and the charging current drops to 1/10 of the set current, TC4059 automatically terminates the charging process. When the input voltage is removed, TC4059 automatically enters a low-current mode, drawing only 30nA from the battery. TC4059 features battery temperature sensing (ESOP-8 and DFN-8 packages), EN enable function (ESOP-8 and DFN-8 packages), input undervoltage lockout, input OVP, reverse battery protection, and thermal regulation. It also supports charge current monitoring, voltage detection, and automatic recharge, with two indicator pins for charge status and charge termination status respectively.
Applications
- Mobile phones, PDAs
- Portable devices, various chargers
- MP3, MP4 players
- Electronic dictionaries, digital cameras
Key features
- VCC port supports up to 7V operating voltage and 36V absolute maximum voltage
- BAT absolute maximum voltage up to 30V
- Programmable charge current up to 1000mA
- Trickle, constant current, and constant voltage operating modes
- No external MOSFET, sense resistor, or blocking diode required
- Input undervoltage lockout (UVLO)
- Input overvoltage protection (OVP)
- Battery reverse polarity protection
- Ultra-low BAT leakage current less than 30nA
- Automatic recharge
- EN enable function (ESOP-8 and DFN-8 packages)
- Battery temperature monitoring (ESOP-8 and DFN-8 packages)
- Thermal regulation
- Battery charging via USB port
- Complete charge status indication
- ESOP-8/DFN-8 (2*3*0.85mm/2×2×0.85mm)/SOT23-6 packages
