TOSHIBADatasheet (PDF)

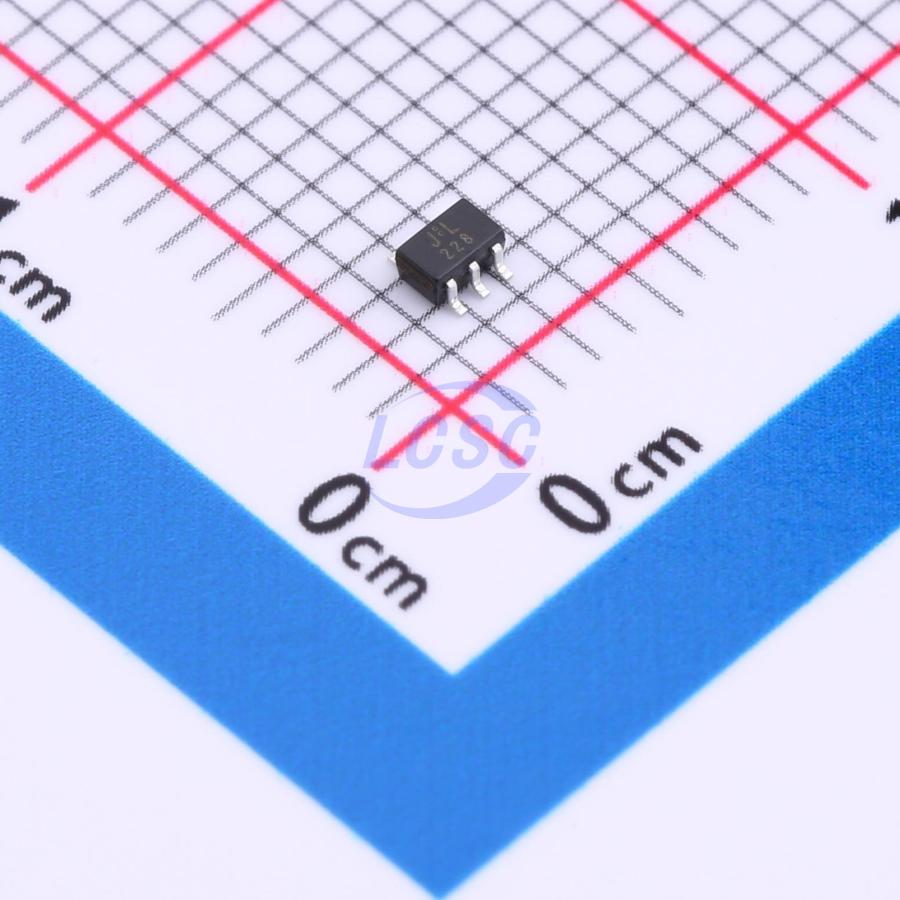

TC7SZ17FU,LJ
Schmitt trigger 1.65V~5.5V 1 1 3.7ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS3 CompliantActive
CMOS Digital Integrated Circuits Silicon Monolithic
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ17FU,LJ
- Store part #
- C5352780
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,910 in stock
#C5352780
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.81 | ₹79.05 |
| 50+ | ₹12.37 | ₹618.50 |
| 150+ | ₹10.65 | ₹1,597.50 |
| 500+ | ₹9.37 | ₹4,685.00 |
| 3,000+ | ₹8.33 | ₹24,990.00 |
| 6,000+ | ₹7.82 | ₹46,920.00 |
5 × ₹15.81
₹79.05
excl. GST
₹93.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SZ17FU,LJ
₹79.05 for 5 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 24mA
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 1uA
- Propagation Delay
- 3.7ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.018 g
Overview
Schmitt Buffer
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125℃
- High output current: ±24 mA (min) at VCC = 3.0 V
- Super high speed operation: tpd = 3.7 ns (typ.) at VCC = 5.0 V, CL = 50 pF
- Operation voltage range: VCC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V VCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EM74LVC1G126GW#C49188131EnergyMath · SOT-353 | EnergyMath | SOT-353 | 2,760 | ₹6.05 · 2,760 in stock | View |
 | EM74LVC1G125GW#C49188135EnergyMath · SOT-353 | EnergyMath | SOT-353 | 2,220 | ₹6.05 · 2,220 in stock | View |
 | 74LVC1G126GW#C52140429MDD(Microdiode Semiconductor) · SOT-353 | MDD(Microdiode Semiconductor) | SOT-353 | 4,936 | ₹9.01 · 4,936 in stock | View |
 | 74LVC1G125GW#C52140430MDD(Microdiode Semiconductor) · SOT-353 | MDD(Microdiode Semiconductor) | SOT-353 | 7,686 | ₹12.65 · 7,686 in stock | View |
 | SN74LVC1G17DCKR(UMW)#C7394034UMW · SC-70-5 | UMW | SC-70-5 | 3,690 | ₹6.47 · 3,690 in stock | View |
